Micro and Distributed Station
Indoor miniature station distribution system

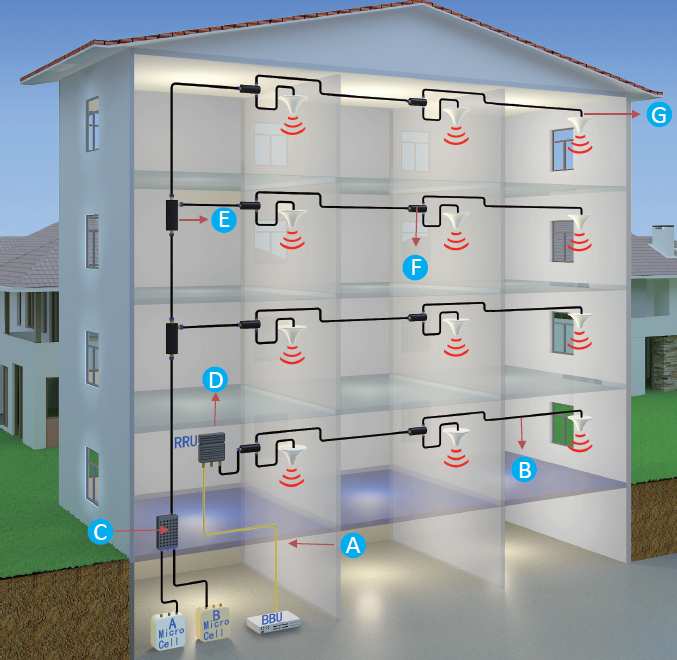

Traditional IBS is passive system which used Feeder cable as the electromagnetic wave transmission media. it is helpful for user indoor by improving siganl quality and coverage and good for BTS by reducing its work.

A. Fiber Optic Cable: Transmit light signal, immune to electromagnetic interference, Higher Bandwidths, Longer distance.

B. Feeder Cable: Transmission tube of RF signal.

C. Combiner: A group of Transformers that assemble and combine their bodies into a single machine.

D. RRU: Radio Remote Unit, a radio transceiver handles light signal and RF signal by Controller at long distance.

E. Coupler: A device used to connect some RF signal from major RF transmitting power.

F. Antenna: A device transmits and receives wireless signal.

G. Splitter: A device couples a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.

RELATED PRODUCTS
  • Optical Module

    Transmission Speed

    SFP: 1.25 / 2.5 / 4.25 Gb/s;

    SFP+: 10 / 14 / 25 Gb/s;

    QSFP: 40 / 56 / 100 Gb/s



    Frequency Range

    Cat5E: 100 MHz; Cat6A: 550 MHz;



    Contact part

    High Reliability



    Sheild

    Copper, Nickel



    Fire Protection Requirements

    UL 1666 CMR

  • Cable、RJ45 Connector

    Sheild

    Cat5E: UTP / FTP / SF-UTP;

    Cat6A: F-FTP / S-FTP / SF-FTP;



    Frequency Range

    Cat5E: 100 MHz; Cat6A: 550 MHz;



    Contact Part

    High Reliability



    Sheild Materials

    Copper, Nickel


    Fire Protection Requirements

    UL 1666 CMR

  • Rubber PVC Tape

    Temperature Range

    PVC tape and Rubber tape: -18 - 130 °C;

    Cold Shrink Tube: -65 - 200 °C;



    Dielectric Strength

    PVC tape and Rubber tape: 45.27 kV/mm;

    Cold Shrink Tube:20.0 kV/mm;



    Adhere(Steel)

    3.08 N/cm (PVC tape)



    Tensile Strength

    2.5 kN/m / 2.0 mPa / 7.0 MPa



    Tear Strength

    25 KN/m (Cold Shrink Tube)

  • Clamp

    Cable Size

    Feeder: 1/4, 3/8, 1/2, 7/8, 1-1/4, 1-5/8;

    Braid: KSR400, KSR600, KSR900;

    Optical Fiber(Rubber)



    Tensile Strength of Plastic Clamp

    100 N;

    Tensile

    100 N.m



    No Halogen

    0 (IEC 60754-1)

    Non Corrosive

    PH=7 (IEC 60754-2)



    Materials

    304 #Stainless Steel and PP,Black

  • Antenna

    Connect Size

    N Type; 4.3/10 Type (New!);



    Frequency Size

    698-960 MHz, 1710-2700 MHz;



    Return Loss, DTF

    698 - 800 MHz -11.0 dB; 800-960 MHz &

    1710-2700 MHz -14.0 dB



    Passive Intermodulation

    -140 dBc



    Inpur Power,Maximum

    50W

  • Coupler

    Connect Size

    7/16 Type; N Type; 4.3/10 Type New!);



    Frequency Range

    698 - 2700 MHz;



    Return Loss, DTF

    698 - 2700 MHz -19.1 dB



    Passive Intermodulation

    -140 / -150 / -140 dBc



    Band Isolation

    20dB

  • RF Connector

    Connect Size

    7/16 Type; N Type; 4.3/10 Type (New!);



    Frequency Range

    Max. 5HZ



    Return Loss, DTF

    0 - 5 HZ ≤ -32.0 dB



    Passive Intermodulation

    -160 dBc (-117dBm)



    Compatible

    Copper or Aluminum

  • RF Cable
    Cable Model
    Feeder:1/4”, 3/8”, 1/2”, 7/8”, 1-1/4”, 1-5/8”;
    Braided Wire:KSR400, KSR600, KSR900;
    Frequency Range
    Feeder:Up to 5 GHz; Braided: Up to 3 GHz;
    Cable Model
    Feeder:1/4”, 3/8”, 1/2”, 7/8”, 1-1/4”, 1-5/8”;
    Braid Wire:KSR400, KSR600, KSR900;
    Frequency Range
    Feeder:Up to 5 GHz; Braided: Up to 3 GHz;
    Cable Model
    Feeder:1/4”, 3/8”, 1/2”, 7/8”, 1-1/4”, 1-5/8”;
    Braid Wire:KSR400, KSR600, KSR900;
    Frequency Range
    Feeder:Up to 5 GHz; Braided: Up to 3 GHz;
    Cable Model
    Feeder:1/4”, 3/8”, 1/2”, 7/8”, 1-1/4”, 1-5/8”;
    Braid Wire:KSR400, KSR600, KSR900;
    Frequency Range
    Feeder:Up to 5 GHz; Braided: Up to 3 GHz;
