Multiple Cores Coaxial Cable
Multiple Cores Coaxial Cable
SFYV-75-2-1×8 More Products

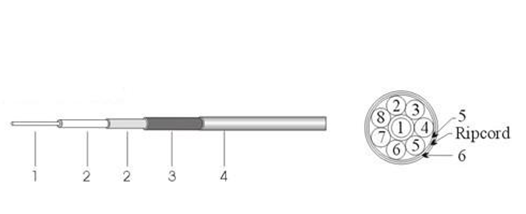

Basic Coaxial
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Solid Copper | 0.25 |
| 2. Dielectric | FEP Solid PE |
0.55 1.45 |
| 3. Outer Conductor | Solid Copper Braid | 1.90 |
| 4. Inner Jacket |
PVC |
3.90 |
| *the coaxial jacket shall be marked with indelibly ink with numbers 1-8. | ||
| Cable Construction | ||
| Cable lay-up The sixteen coaxial are assembled together, and wrapped with plastic tape. | ||
| 5. Outer Jacket Diameter | PVC | 14.20 |
| 6. Filling | Non-woven Cloth | --- |
Electrical Characteristic
| Max Inner Conductor DC Resistance(Ohm/km@20℃) | 365 |
| Insulation Resistance(Gohm.km) | 10 |
| Capacitance(pF/m) | Nom.67 |
| Impedance(ohm) | 75 |
| Voltage Withstanding(Vdc 50Hz/1min.) | 1500 |
| Operating Voltage(Vrms) | 500 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -25 to +70 |
| ROHS | Compliant |
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) |
|---|---|
| 1 | 3.1 |
| 2 | 4.5 |
| 10 | 9.6 |
