SMA

SMA-KFD(3) More Products

Home > Produtos > frequência alta > High Frequency Connector

Primary Technical Characteristics

Elecreical Performance			Material and Mechanical Performance
Characteristic Impedance	50Ω		Center Contact	Pin	Brass	Gold Plating
Frequency Range	DC~18GHz		Center Contact	Socket	Beryllium Copper	Gold Plating
Rated Voltage	335V rms		Body and Other Metal Parts		Brass/Stainless Steel	Gold plating / Passivation
Dielectric Strength Voltage	1000V rms		Elastic Part		Beryllium Copper	Gold Plating
VSWR	≤1.05+0.1f(GHz)		Insulator		PTFE or LCP
VSWR	≤1.05+0.08f(GHz)		Seal Ring		Silicon Rubber
Contact Resistance	≤3mΩ	Center Contact	Temperature Range		-65℃ ~+165℃
Contact Resistance	≤2mΩ	Outer Contact	Durability		500 times
Insulation Resistance	≥5000MΩ
Insertion Loss	≤0.06√f(GHz)dB

Model

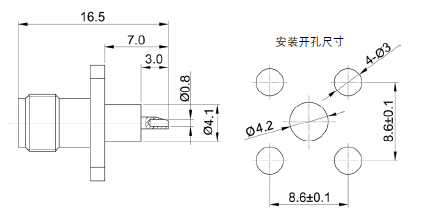

Part Number	Cable Type	Notes

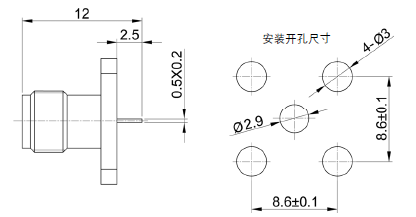

SMA-KFD39

Part Number	Cable Type	Notes

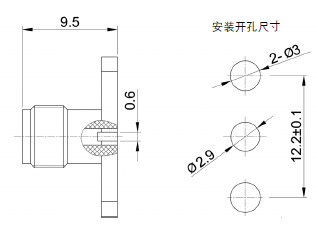

SMA-KFD40

Part Number	Cable Type	Notes
SMA-KFD41

Part Number	Cable Type	Notes
SMA-KFD42

Part Number	Cable Type	Notes
SMA-KFD44

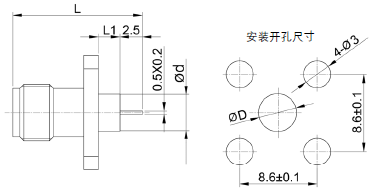

Part Number	L1	L	d	D
SMA-KFD45	2.4	14.4	4.1	4.2
SMA-KFD68	3.2	15.2	2.1	2.2
SMA-KFD324	7.0	19.0	4.1	4.2

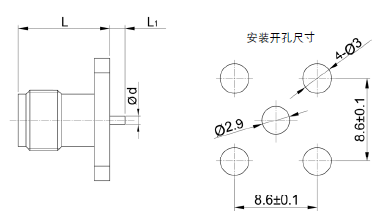

Part Number	L1	L	d
SMA-KFD47	1.6	11.1	0.9
SMA-KFD48	1.2	10.7	0.8
SMA-KFD48A	0.9	10.4	0.6

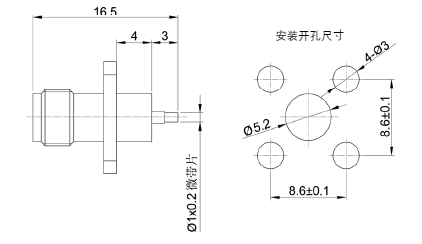

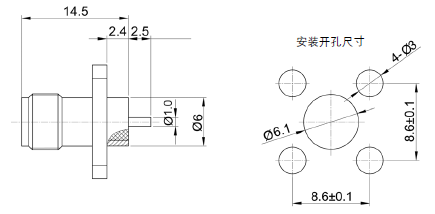

Part Number	Cable Type	Notes
SMA-KFD51

Part Number	Cable Type	Notes
SMA-KFD54

Part Number	Cable Type	Notes
SMA-KFD55

Part Number	Cable Type	Notes
SMA-KFD56

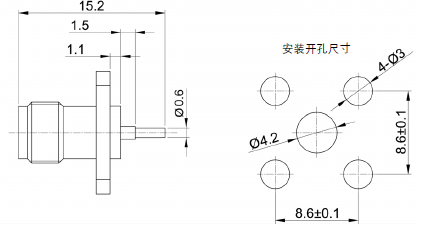

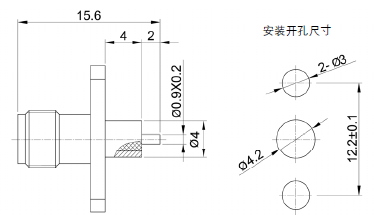

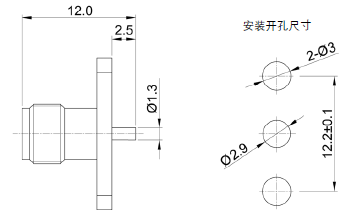

Part Number	L1	L2	L	d
SMA-KFD57	5.0	3.0	17.5	0.8
SMA-KFD64	15.0	2.9	27.4	1.3
SMA-KFD77	2.0	4.0	15.6	1.3
