Low Loss Cable Assemblies

Low Loss Cable Assemblies More Products

Home > Produtos > frequência alta > Cable Assemblies

Pimary Performance of Some Typical Cable Assemblies

Part Number of Cable Assemblies	Frequency Range	VSWR	Insertion Loss dB Max

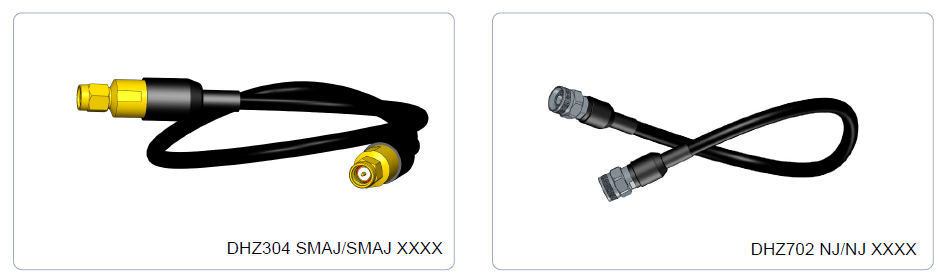

DHZ304 SMAJ/SMAJ XXXX	0~20 GHz	≤ 1.30	Standard Attenuation +2 × 0.06 f(GHz)
DHZ304 SMKJ/SMAK XXXX	0~20 GHz	≤ 1.35
DHZ401 NJ/NJ XXXX	0~18 GHz	≤ 1.25
DHZ502 NJ/NJ XXXX	0~18 GHz	≤ 1.25
DHZ502 NJ/NK XXXX	0~18 GHz	≤ 1.30
DHZ604 NJ/NJ XXXX	0~18 GHz	≤ 1.25
DHZ702 NJ/NJ XXXX	0~18 GHz	≤ 1.25

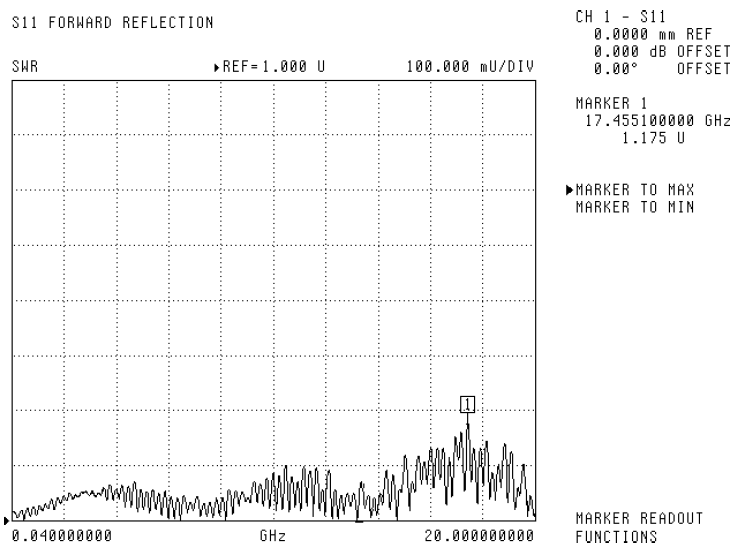

Typical VSWR Performance of DHZ304 SMAJ/SMAJ0500 Cable Assembly
