Pimary Performance of Some Typical Cable Assemblies

Part Number of Cable Assemblies	Frequency Range	VSWR	Insertion Loss dB Max
GXZ201SMKJ/SMKJ XXXX	0~40 GHz	≤ 1.35	Standard Attenuation +2 × 0.06 f(GHz)
GXZ201SMKJ/SMKK XXXX	0~40 GHz	≤ 1.40
GXZ504SMAJ/SMAJ XXXX	0~20 GHz	≤ 1.30
GXZ504SMAJ/SMJK XXXX	0~20 GHz	≤ 1.35
GXZ504SMAJ/SMJJ XXXX	0~20 GHz	≤ 1.30
GXZ504 NJ/NJ XXXX	0~18 GHz	≤ 1.25
GXZ504 NJ/NK XXXX	0~18 GHz	≤ 1.30

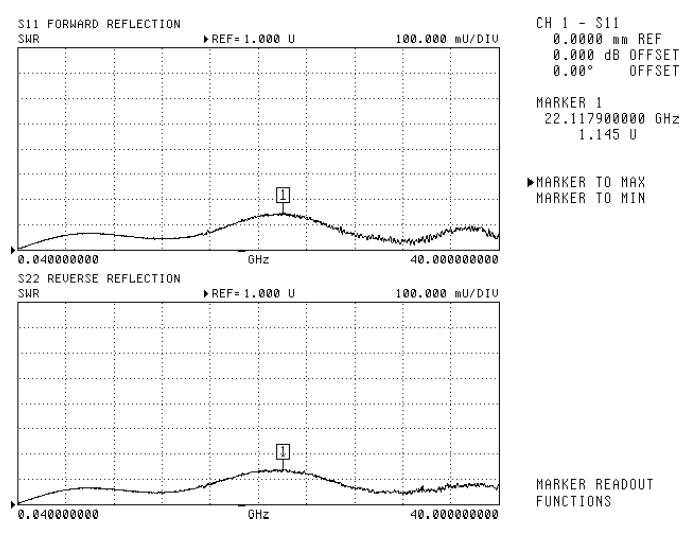

Typical VSWR Performance of GXZ201 SMKJ/SMKJ0300 Cable Assembly
