CATV Coaxial Cable
CATV Coaxial Cable

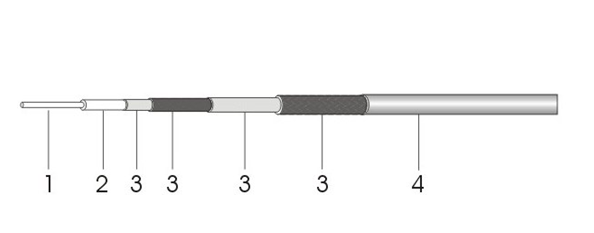

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner conductor | Solid Copper or Copper Clad Steel | 1.02 |
| 2. Dielectric | Physical Foam Polyethylene | 4.57 |
| 3. Outer conductor | Bonded Aluminum Foil + Aluminum Braid+ Un-bonded Aluminum Foil + Aluminum Braid | Nom.5.90 |
| 4. Jacket |
PVC or Polyethylene |
7.54 |
Electrical Characteristics
| Capacitance(pF/m) | 52 |
|
| Impedance(ohm) | 75 | |
| Velocity of Propagation(%) | 85 | |
| Shielding Effectiveness(>dB) | 85 | |
| Max Testing Voltage(Vrms) | 3000 | |
| Return loss(≥dB) | VHF UHF |
20 20 |
Mechanical and Environmental Characteristics
| Operating Temp.(℃) | PVC PE |
-25 to +70 -40 to +80 |
| Min. Bend Radius(mm) | 35 | |
| ROHS | Compliant |
Attenuation(20℃)
| Frequency(MHz) | Attenuation(dB/100m) |
|---|---|
| 5 | 1.90 |
| 55 | 5.25 |
| 211 | 10.00 |
| 400 | 13.61 |
| 550 | 16.08 |
| 750 | 18.54 |
| 870 | 20.01 |
| 1000 | 21.49 |
| 1450 | 25.92 |
| 1750 | 28.70 |
| 2150 | 31.82 |
