Basic Coaxial

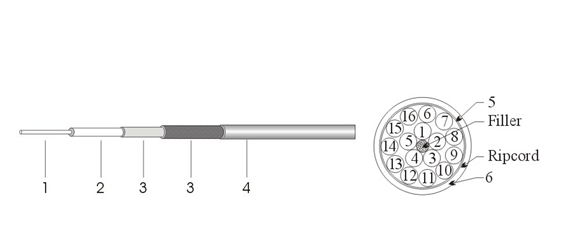

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   0.40
  2. Dielectric   Physical Foam Polyethylene   1.95
  3. Outer Conductor   Aluminum Foil + Tinned Copper Braid   Nom.2.45
  4. Inner Jacket

  PVC

  3.20
   *the coaxial jacket shall be marked with indelibly ink with numbers 1-16.
  Cable Construction
  Cable lay-up    The sixteen coaxial are assembled together, and wrapped with plastic tape.
  5. Outer Jacket Diameter   PVC   16.5
  6. Filling   Physical Foam Polyethylene   ---

Electrical Characteristic

  Max Inner Conductor DC Resistance(Ohm/km@20℃)   138
  Insulation Resistance(Mohm.km)   1000
  Capacitance(pF/m)   Nom.56
  Impedance(ohm)   75
  Velocity of Propagation(%)   76
  Operating Voltage(Vrms)   500

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -25 to +70
  ROHS   Compliant

Attenuation

  Frequency(MHz)  Attenuation(dB/100m)
  1   2.0
  4   3.6
  17   7.2
  70   14.8
  200   26.0
