FLL Low Loss Cable

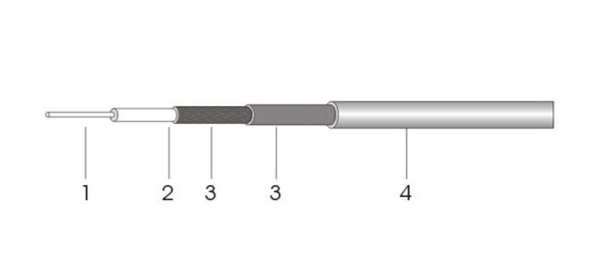

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   0.93
  2. Dielectric   Physical Foam Polyethylene   2.95
  3. Outer Conductor   Double Silver Plated Copper Braid   Nom.4.10
  4. Jacket   Low Smoke Halogen Free Polyethylene   5.10

Electrical Characteristic

  Capacitance(pF/m)   95
  Impedance(ohm)   50
  Velocity of Propagation(%)   70
  Dielectric Resistance(Mohm.km)   5000
  Dielectric Strength(KV)   2.0
  Max Operating Voltage(KVrms)   1.4

Mechanical and Environmental Characteristics

  Min. bending radius static(mm)   25
  Min. bending radius repeated(mm)   50
  Operating temp(℃)   -40 to +80
  ROHS   Compliant

Attenuation(Seal Level 20℃)

  Frequency(MHz)  Attenuation(dB/m)
  150   0.19
  220   0.23
  450   0.34
  900   0.51
  1500   0.69
  1800   0.78
  2000   0.83
  2500   0.95
