FLL Low Loss Cable

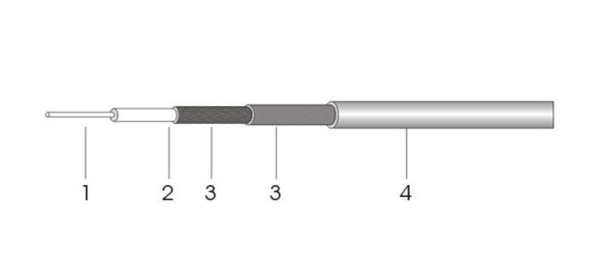

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   2.05
  2. Dielectric   Physical Foam Polyethylene   3.75
  3. Outer Conductor   Double Silver Plated Copper Braid   Nom.6.75
  4. Jacket   Low Smoke Halogen Free Polyethylene   7.90

Electrical Characteristic

  Capacitance(pF/m)   82
  Impedance(ohm)   50
  Velocity of Propagation(%)   82
  Max Operating Frequency(GHz)   6.0
  Max Operating Voltage(KVrms)   0.75
  Dielectric Resistance(Mohm.km)   5000

Mechanical and Environmental Characteristics

  Min. bending radius static(mm)   40
  Min. bending radius repeated(mm)   80
  Operating temp(℃)   -40 to +80
  ROHS   Compliant

Attenuation(Seal Level 20℃),Avg.Power

  Frequency(MHz)  Attenuation(dB/m)  Avg.Power(W)
  1200   0.28   164
  1500   0.32   147
  1800   0.35   134
  2100   0.39   124
  2400   0.42   116
  2700   0.46   110
  3000   0.49   104
  4200   0.59   88
  4800   0.65   82
  6000   0.75   73
