Optical cable assembly

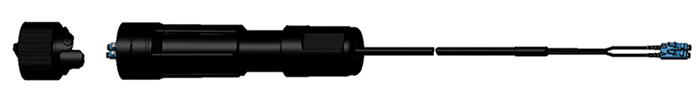

FTTA Optical cable assembly with waterproof connector
|
O.D of optical cable |
4.8mm |
5.5mm |
7.0mm |
|
Type of optical cable |
Metal armored gopher protected cable and common armored cable |
Common armored cable |
Common armored cable |
|
Material of jacket |
LSZH |
LSZH |
LSZH |
|
Tensile strength of optical cable installation/operation |
300N/500N |
500N/1000N |
650N/1000N |
|
Flattening Resistance of optical cable Long term/short term |
200N/400N/cm |
200N/400N/cm |
300N/1000N/cm |
|
Temperature range |
-40°~+ 85° |
-40°~+ 85° |
-40°~+ 85° |
|
Flame resistant property |
IEC 60332-1, IEC 60332-3-24 |
IEC 60332-1, IEC 60332-3-24 |
IEC 60332-1, IEC 60332-3-24 |
|
UV resistance |
ISO 4892-3 |
ISO 4892-3 |
ISO 4892-3 |
|
Protection grade |
IP68 |
IP68 |
IP68 |
|
Length |
As required |
As required |
As required |
|
Type of fiber |
9/125 G 657A2 |
9/125 G 657A2 |
9/125 G 657A2 |
|
Type of connector |
LC duplex, single-mode |
LC duplex, single-mode |
LC duplex, single-mode |
|
Optical property |
IL≤0.3 dB RL≥50dB |
IL≤0.3 dB RL≥50dB |
IL≤0.3 dB RL≥50dB |
