Optical cable assembly

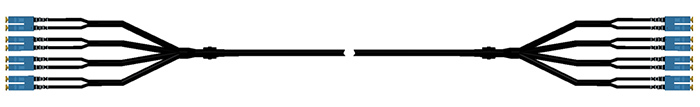

Outdoor Multi core optical cable assembly with waterproof connector
|
fiber number |
Up to 12 core |
Up to 24 core |
Up to 48 core |
|
Type of splitter |
S |
M |
L |
|
O.D of splitter |
22mm |
31mm |
45mm |
|
Installation length of splitter |
48mm |
58mm |
70mm |
|
Dimension of mounting hole |
15.6-16.4mm |
25.5mm-26.5mm |
37-39mm |
|
Thread Specification of splitter |
M16x1 |
M26x2 |
PG29 |
|
Tensile force of splitter junction |
1000N |
1000N |
1200N |
|
Protection grade |
IP67 |
IP67 |
IP67 |
|
Branch optical cable |
|||
|
O.D of Branch optical cable |
2.1-2.8mm |
2.1mm |
2.1mm |
|
Length of branch |
|||
|
Max length |
1185±50mm |
1045±50mm |
1045±50mm |
|
Min Length |
450±50mm |
520±50mm |
520±50mm |
|
Mark of single branch |
Digital code |
Digital code |
Digital code |
|
Material of branch |
LSZH |
LSZH |
LSZH |
|
Type of connector |
Various kinds of optical fiber connector |
Various kinds of optical fiber connector |
Various kinds of optical fiber connector |
|
Optical cable |
|||
|
O.D of optical cable |
8.5mm |
15mm |
15mm |
|
Material of jacket |
LSZH or as required |
LSZH or as required |
LSZH or as required |
|
Type of fiber |
Single-mode or multimode is optional As required. |
||
|
Temperature |
|||
|
Installation temperature |
-10℃~+50℃ |
-10℃~+50℃ |
-10℃~+50℃ |
|
Operating temperature |
-40℃~+70℃ |
-40℃~+70℃ |
-40℃~+70℃ |
|
Storage temperature |
-40℃~+70℃ |
-40℃~+70℃ |
-40℃~+70℃ |
