Butterfly Optical Cable
Feature
• Good mechanical and environmental performance.
• Small size, light weight, compact construction.
• Flame retardance meets relevant standards.
• Mechanical property of Jacket meets relevant standards.

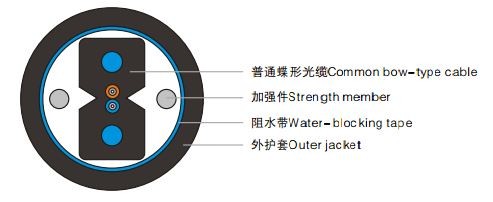

• Optical fiber(s) is placed between two strength members, with excellent crush and tensile resistance.
• Excellent anti-bending property when G.657 bending insensitive fiber is applied.
• Applicable for building leading-in cable in pipeline or overhead.
Technical Parameter
| Fiber Count | Cable Size（mm） | Cable Weight（kg/km） | Tensile Load（N） | Crush Load（N/100mm） | Temperature Range（℃） | ||
|---|---|---|---|---|---|---|---|
| Long-term | Short-term | Long-term | Short-term | ||||
| 1-4 | 7.0 | 44 | 300 | 600 | 1000 | 2200 | -40~+60 |
Note: 1. Minimum bend radius: for B6 fiber, 10D under dynamic condition and 5D under static condition). (D is overall diameter of round cable)2.All the data in the table are for reference and subject to change without notification.
