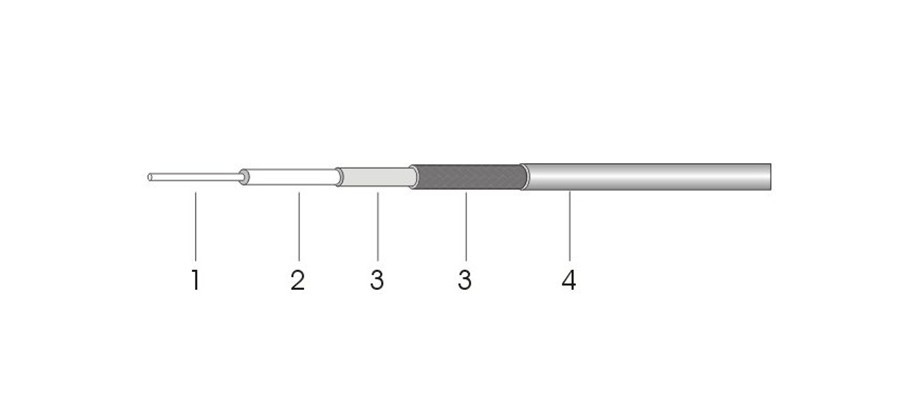

Construction Characteristic

  Item  Material  Diameter(mm)
  1. Inner Conductor    Solid Copper or Copper Clad Aluminum   2.60
  2. Dielectric    Physical Foam Polyethylene   7.30
  3. First Shield

   Bonded Aluminum

  Nom.7.50
  3. Outer Conductor

   Tinned Copper Braid

  Nom.8.00
  4. Jacket    PVC or Polyethylene   9.80

Electrical Characteristic

  Capacitance(pF/m)   82
  Impedance(ohm)   50
  Velocity of Propagation(%)   81
  Inner Conductor DC Resistance(Ω/km)   3.3/5.4
  Outer Conductor DC Resistance(Ω/km)   9.3
  Shielding Effectiveness(dB)   80

Mechanical and Environmental Characteristic

  Storage Temp.(℃)   -25 to +70 or -40 to +80
  Installation Temp.(℃)   -20 to +60 or -20 to +60
  Operating Temp.(℃)   -25 to +70 or -40 to +80
  Min Bending Radius(mm)   49
  ROHS   Compliant

Attenuation(20℃)

  Frequency(MHz)   Attenuation(dB/m)
  100     4.30
  150     5.30
  280     7.30
  350     8.30
  400     9.00
  800     13.1
  900     14.2
  1200     16.7

  1500

    19.0
  1800     21.1
  1900     21.8
  2000     22.5
  2200     23.8
  2500     25.7
