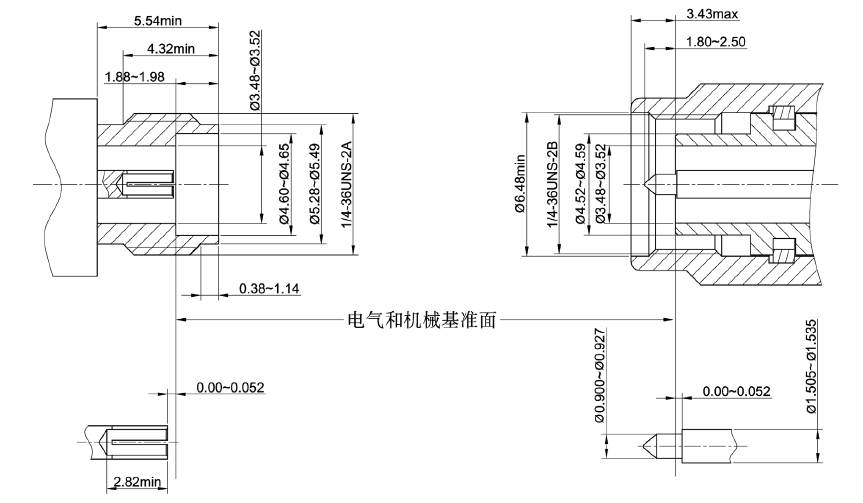

APC3.5
APC3.5
APC3.5-JJ More Products
Primary Technical Characteristics
| Elecreical Performance | Material and Mechanical Performance | |||||
|---|---|---|---|---|---|---|
| Characteristic Impedance | 50Ω | Center Contact | Pin | Brass | Gold Plating | |
| Frequency Range | DC~30GHz | Socket | Beryllium Copper | Gold Plating | ||
| Rated Voltage | 335V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
| Dielectric Strength Voltage | 1000V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
| VSWR | ≤1.05+0.08f(GHz) | Insulator | PTFE or LCP | |||
| Contact Resistance | ≤4.0mΩ | Center Contact | Seal Ring | Silicon Rubber | ||
| ≤2.5mΩ | Outer Contact | Temperature Range | -65℃ ~+165℃ | |||
| Insulation Resistance | ≥5000MΩ | Durability | 500 times | |||
| Insertion Loss | ≤0.05√f(GHz)dB | |||||
Model
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|
| APC3.5-JJ | |
