SMC connectors are a type of coaxial connectors designed according to the standards of MIL-C-39012, IEC60169-9 and CECC22140, with thread connecting mechanism and a characteristics impedance of 50Ω, whose frequency can reach 100GHz. These products are characterized by small size, light weight, high connecting reliability and good anti-shock capability, and are used to connect RF coaxial cables in RF system, military or civil telecommunications, aviation, missiles, radio equipment and instruments.

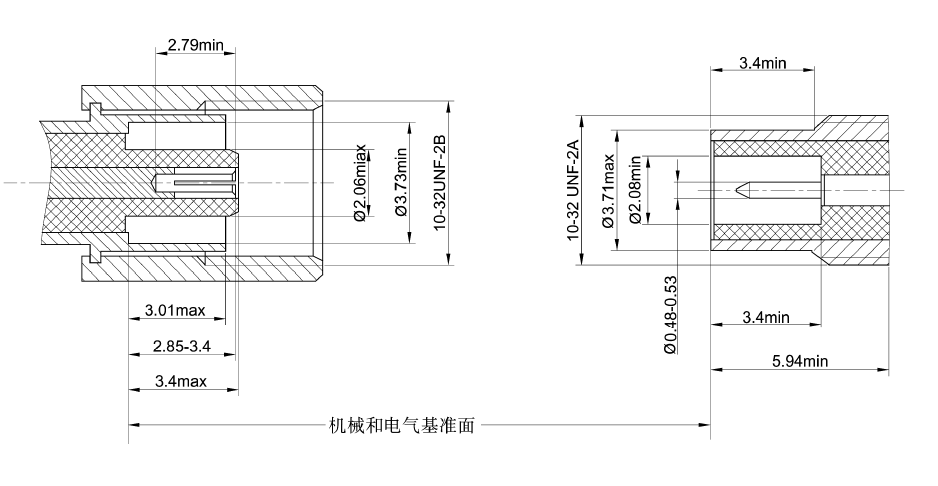

Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Beryllium Copper   Gold Plating
  Frequency Range   DC~11GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   335V rms     Beryllium Copper   Brass/Stainless Steel   Gold plating / Passivation
  Dielectric Strength Voltage   750V rms     Elastic Part     Beryllium Copper   Gold Plating
  VSWR   ≤1.25   Straight   Insulator     PTPE
  ≤1.35   Angled   Seal Ring     Silicon Rubber
  Contact Resistance   ≤6.0mΩ   Center Contact   Temperature Range     -65℃ ~+165℃
  ≤2.0mΩ   Outer Contact   Durability     500 times
  Insulation Resistance   ≥1000MΩ
  Insertion Loss   ≤0.06√f(GHz)dB



  Part Number  Cable Type  Notes
  SMC-JY202Y   SFF-50-2-51
