BMA RF Coaxial connectors are a type of mini drop-in connectors developed and produced according to the standards of IEC1169-33 and MIL-C-39012. They are universally used blind-mating RF coaxial connectors, whose reasonably designed floating range ensures safe and reliable the frequency reach 22GHz. Besides, they also have the frequency reach 22GHz. Besides, they also have the features of small size, easy mating, superior mechanical and electronic performance, etc. therefore, these series are widely used in the field of military and civil microwave communication.
Primary Technical Characteristics
Elecreical Performance | Material and Mechanical Performance | |||||
---|---|---|---|---|---|---|
Characteristic Impedance | 50Ω | Center Contact | Pin | Brass | Gold Plating | |
Frequency Range | DC~18GHz | Socket | Beryllium Copper | Gold Plating | ||
Rated Voltage | 335V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
Dielectric Strength Voltage | 1000V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
VSWR | ≤1.15+0.012f | Insulator | PTFE | |||
Contact Resistance | ≤3.0mΩ | Center Contact | Seal Ring | Silicon Rubber | ||
≤2.0mΩ | Outer Contact | Temperature Range | -65℃ ~+165℃ | |||
Insulation Resistance | ≥5000MΩ | Durability | 500 times | |||
Insertion Loss | ≤0.06√f(GHz)dB |
Model
Part Number | Cable Type | Notes |
---|---|---|

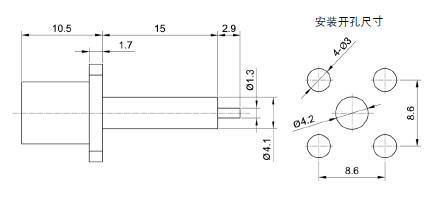

BMA-KFD1 | 3.2 | 2.0 |
Part Number | Cable Type | Notes |
---|---|---|

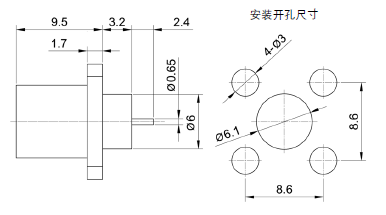

BMA-JFD2 |
Part Number | Cable Type | Notes |
---|---|---|

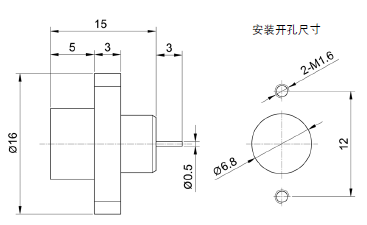

BMA-JFD3G | |
Part Number | Cable Type | Notes |
---|---|---|

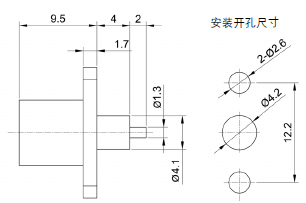

BMA-JFD4G | |
Part Number | Cable Type | Notes |
---|---|---|

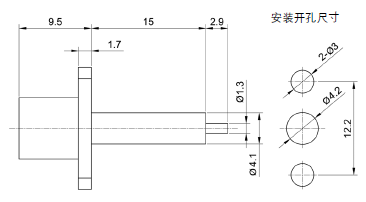

BMA-JFD6 |
Part Number | L1 | L2 | L |
---|---|---|---|
BMA-JFD7 | 4.0 | 0.7 | 12.0 |
BMA-JFD8 | 2.5 | 0.5 | 11.0 |
