TNC RF coaxial connectors are a type of connectors similar to BNC connectors designed according to the standards of MIL-C-39012 and IEC60169-17. They are with thread connection to meet the high anti-knock requirements of applied products, which is different from BNC connectors. Those connectors with an impedance of 50Ω can be used for the broadband from DC to 11GHz while those with an impedance of 75Ω from DC to 1GHz. These products are characterized by high connecting reliability and anti-shock performance and are used to connect RF coaxial cables in radio equipment and instruments, esp. suitable for mobile communication equipment under a high vibration load.

Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Brass   Gold Plating
  Frequency Range   DC~11GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   500V rms     Body and Other Metal Parts   Brass/Stainless Steel   Nickel Plating / Passivation
  Dielectric Strength Voltage   1500V rms     Elastic Part     Beryllium Copper   Nickel Plating / Passivation
  VSWR   ≤1.3      Insulator     PTFE
  Contact Resistance   ≤2.0mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤1.0mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥5000MΩ     Durability

  500 times


  Insertion Loss   ≤0.05√f(GHz)dB



Model

  Part Number  Cable Type  Notes

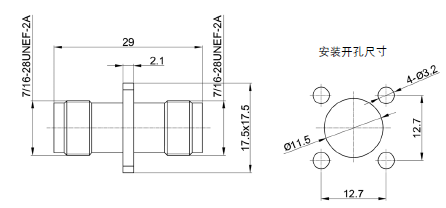

  TNC-KKF
