SAA-KWYHD More Products
Primary Technical Characteristics
| Elecreical Performance | Material and Mechanical Performance | |||||
|---|---|---|---|---|---|---|
| Characteristic Impedance | 50Ω | Center Contact | Pin | Beryllium Copper | Gold Plating | |
| Frequency Range | 0~4.8GHz | Socket | Beryllium Copper | Gold Plating | ||
| Rated Voltage | 250V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
| Dielectric Strength Voltage | 750V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
| VSWR | ≤1.25 | Straight | Insulator | PTPE | ||
| ≤1.40 | Angled | Seal Ring | Silicon Rubber | |||
| Contact Resistance | ≤10mΩ | Center Contact | Temperature Range | -65℃ ~+165℃ | ||
| ≤6.0mΩ | Outer Contact | Durability | 500 times | |||
| Insulation Resistance | ≥1000MΩ | |||||
| Insertion Loss | ≤0.06√f(GHz)dB | |||||
Model
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|

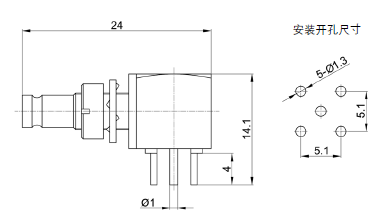

| SAA-KWYHD |
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|

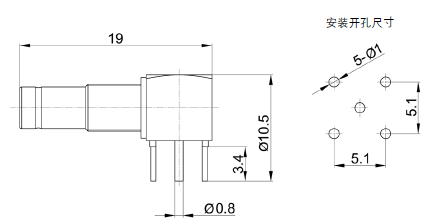

| SAA-KWYHD1 | |
