Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Beryllium Copper   Gold Plating
  Frequency Range   0~30GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   250V rms     Body and Other Metal Parts   Brass/Stainless Steel   Gold plating / Passivation
  Dielectric Strength Voltage   750V rms     Elastic Part     Beryllium Copper   Gold Plating
  VSWR   ≤1.07+0.1F(GHz)      Insulator     PTFE
  Contact Resistance   ≤6.0mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤2.5mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥10000MΩ     Durability     500 times
  Insertion Loss   ≤0.06√f(GHz)dB

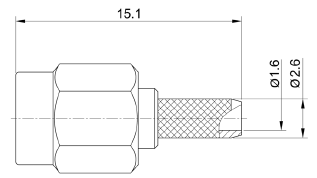

Model

  Part Number  Cable Type  Notes
  SSMA-J104   SFF-50-1-51
  SSMA-J202   SFF-50-2-51





  Part Number  Cable Type  Notes
  SSMA-J201   SFT-50-2-51
