Power Cable
<Upper layer

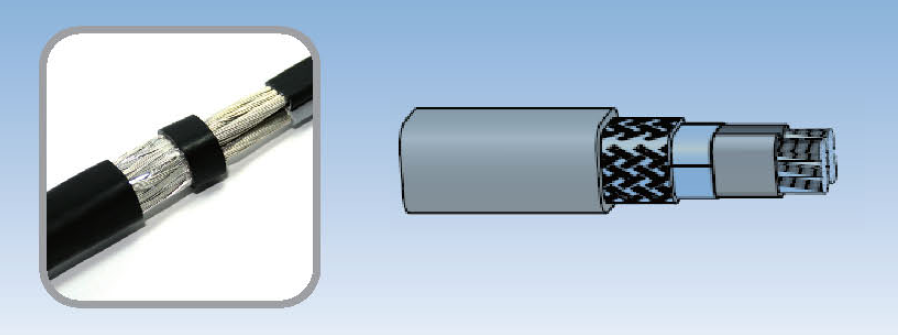

    Halogen free, shielded and flexible connecting cable for use in telecom equipment where there are requirements for low inductance and good temperature resistance. Suitable in areas that require high electromagnetic compatibility.
    Grey jacket for indoor use. Black jacket is sunlight resistance, for outdoor use.

    Construction Specification

      Item  Material  Diameter(mm)
      Inner Conductor   Stranded tin plated copper   3×14×0.254TC
      Dielectric   LSZH(Gray, Black)   2.4×4.5
      Shield   Tin plated copper wire   5.4±0.20
      Jacket   Grey LSOH-material   7.0×7.3

    Electrical Characteristics

      Test voltage(KV)   Nom.2.0, 1min
      Conductor resistance(Ω/km)   Nom.8.21
      Insulation resistance   ≥200MΩ·km
      Inductance L µH/m   0.45

    Mechanical and Environmental Characteristics

      Temperature range(℃)   -20 to +90
      Pull force   ≤130N
      Bending radius once(mm)   70
      Repeated bending radius(mm)   100
      Weight(Kg/Km)   100
      ROHS Compliant product   ①IEC60032-3 Cat C
      ③UL 1685
