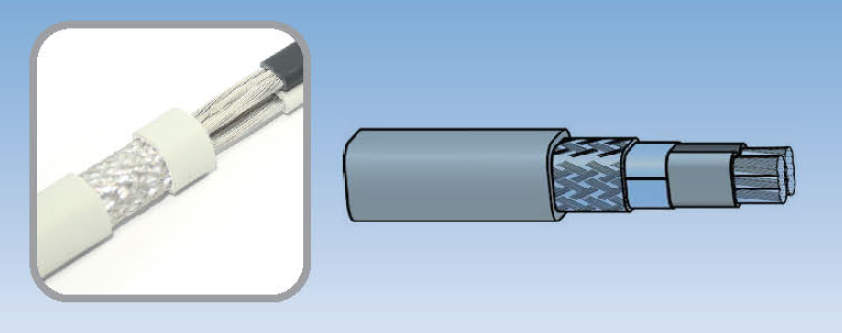

Power Cable
<Upper layer

    Halogen free, flexible connecting cable for fixed installation. Intended for power supply of telecom equipment, where there are requirements for low inductance and good temperature resistance.

    Construction Specification

      Item  Material  Diameter(mm)
      Inner Conductor   3 parallel stranded tin annealed copper   3-(26×0.404±0.004) TC
      Dielectric   LSZH   (3.8±0.2)×(9.0±0.2)
      Cabling   Parallel
      Jacket   Grey LSZH-material   A=8.8(+1.3,-0.4)
      C=0.7±0.15  T=0.8±0.15  t=0.6+0.3

    Electrical Characteristics

      Inner conductor resistance(ohm/km)   ≤1.95
      Insulation strength(AC kv/1min)   ≥2.0
      Insulation resistance(G ohm.m)   ≥2.0
      Inductance(µH/m)   ≤0.40

    Mechanical and Environmental Characteristics

      Temperature range(℃)   -20 to +90
      Weight(kg/km)   240
      Tensile strength of dielectric and jacket(MPa)   ≥10
      Elongation at 100% break   ≥125%
      ROHS Compliant product   ①IEC60032
      ③UL 1685
