Tri-Coaxial Cable
Tri-Coaxial Cable
TRX-400 More Products

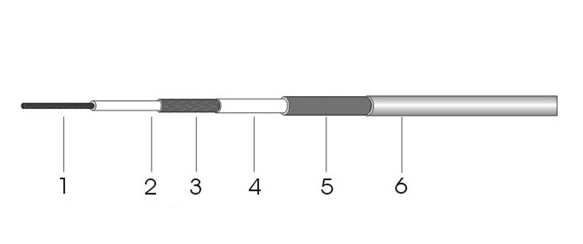

Construction Characteristic
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 19X0.203 |
| 2. Dielectric | PTFE | 2.95 |
| 3. Inner Braiding | Silver Plated Copper | Nom.3.45 |
| 4. Inner Jacket | FEP | 4.22 |
| 5. Outer Braiding | Silver Plated Copper | Nom.4.72 |
| 6. Outer Jacket | FEP | 5.46 |
Electrical Characteristic
| Capacitance(pF/m) | 96.45 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 70 |
| Max Operating Voltage(Vrms) | 1900 |
| Max Operating Frequency(MHz) | 12400 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +200 |
| Bending Radius(mm) | 25 |
| ROHS | Compliant |
Attenuation
| Frequency(MHz) | Attenuation(dB/m) |
|---|---|
| 100 | 0.144 |
| 400 | 0.295 |
| 1000 | 0.482 |
| 3000 | 0.883 |
| 5000 | 1.184 |
| 11000 | 1.899 |
