SMA connectors are a type of mini coaxial connectors designed according to the standard of MIL-C-39012, IEC 60169-15 and CECC 22110/22111. These products are of thread connecting mechanism and high frequency and can provide the broadband from DC to 18GHz and are characterized by low-frequency reflection and an impedance of 50Ω. The main features of this series are high mechanical strength, high durability and low-voltage VSWR. They are of long span, superior performance and high reliability and can be widely used to connect RF coaxial cables or micro-wave in the RF circuits of base stations, cable assemblies, components, instruments and meters, military use, computer procedure control and digital communications equipment.
Primary Technical Characteristics
Elecreical Performance | Material and Mechanical Performance | |||||
---|---|---|---|---|---|---|
Characteristic Impedance | 50Ω | Center Contact | Pin | Brass | Gold Plating | |
Frequency Range | DC~18GHz | Socket | Beryllium Copper | Gold Plating | ||
Rated Voltage | 335V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
Dielectric Strength Voltage | 1000V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
VSWR | ≤1.05+0.1f(GHz) | Insulator | PTFE or LCP | |||
≤1.05+0.08f(GHz) | Seal Ring | Silicon Rubber | ||||
Contact Resistance | ≤3mΩ | Center Contact | Temperature Range | -65℃ ~+165℃ | ||
≤2mΩ | Outer Contact | Durability | 500 times | |||
Insulation Resistance | ≥5000MΩ | |||||
Insertion Loss | ≤0.06√f(GHz)dB |
Model
Part Number | Cable Type | Notes |
---|---|---|

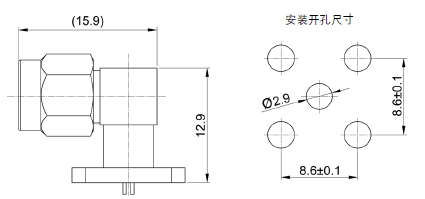

SMA-JWFD | |
