N RF coaxial connectors are a type of medium size connectors designed according to the standards of MIL-C-39012, IEC60169-16 and CECC 22210, with an impedance of 50Ω (75Ω), thread connecting mechanism and large or medium power, whose frequency range can reach 11GHz. The products are characterized by high anti-shock capability, high reliability, and good mechanical and electric performance, etc. They are widely used in base station equipment, media communication, satellite communication systems and precision measuring instruments, and to connect RF coaxial cables of radio equipment and instruments under a high vibration and environmental load.

Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Brass

  Gold Plating

  Frequency Range   DC~18GHz


  Beryllium Copper   Gold Plating
  Rated Voltage   500V rms     Body and Other Metal Parts   Brass/Stainless Steel   Nickel Plating / Passivation
  Dielectric Strength Voltage   2000V rms     Elastic Part     Beryllium Copper   Nickel Plating / Passivation
  VSWR   ≤1.05+0.008f(GHz)      Insulator     PTFE
  Contact Resistance   ≤1.0mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤0.25mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥5000MΩ     Durability     500 times
  Insertion Loss   ≤0.05√f(GHz)dB

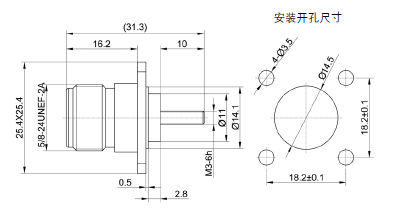

  Part Number  Cable Type  Notes

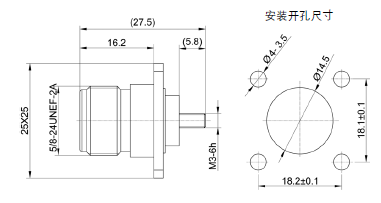

  Part Number  Cable Type  Notes
