Semi-Flexible Cable

670-086/75 More Products

Home > PRODUCTS > RF transmission > RF Cable

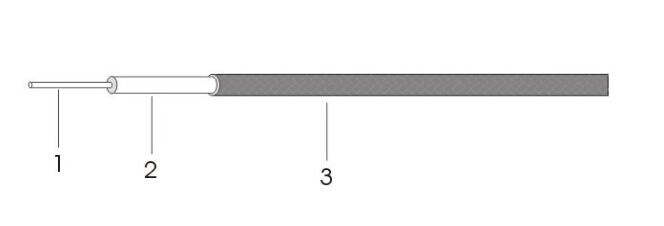

Construction Specification

Item Material Diameter(mm)

1. Inner Conductor Silver Plated Copper Clad Steel 0.29

2. Dielectric PTFE 1.65

3. Outer Conductor
Tin Soaked Copper Braid 2.15

Electrical Characteristic

Capacitance(pF/m) 63.5

  Impedance(ohm) 75

  Velocity of Propagation(%) 70

  Cutoff frequency(GHz) 61

  Time Delay(ns/m) 4.7

Shielding Effectiveness up to 18GHz(dB)
100

Mechanical Characteristic

Min. Bending Radius Static(mm) 6

  Min. Bending Radius Repeated(mm) 20

Operating Temp.(℃)

-55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

Frequency(GHz) Attenuation(dB/m) Power(CW)

0.5 0.48 173.3

1.0 0.68 121.4

5.0 1.60 52.2

10.0 2.34 35.9

20.0 3.47 24.4
