Semi-Flexible Cable

670-141/100 More Products

Home > PRODUCTS > RF transmission > RF Cable

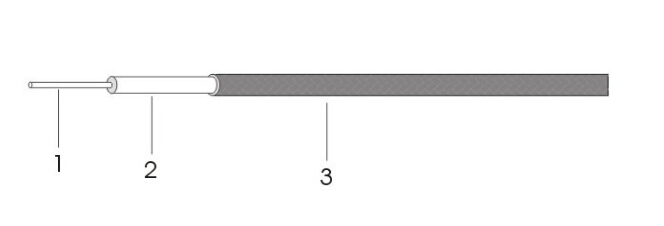

Construction Specification

Item Material Diameter(mm)

1. Inner Conductor Silver Plated Copper Clad Steel 0.28

2. Dielectric PTFE 3.00

3. Inner Conductor
Tin Soaked Copper Braid 3.52

Electrical Characteristic

Capacitance(pF/m) 47.6

  Impedance(ohm) 100

  Velocity of Propagation(%) 70

  Cutoff frequency(GHz) 36

  Time Delay(ns/m) 4.7

Shielding Effectiveness up to 18GHz (dB)
100

Mechanical Characteristic

Min. Bending Radius Static(mm) 8

  Min. Bending Radius Repeated(mm) 40

Operating Temp.(℃)

-55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

Frequency(GHz) Attenuation(dB/m)   Power(CW)

0.5 0.35 245.5

1.0 0.50 172.2

5.0 1.16 74.5

10.0 1.69 51.5

20.0 2.49 35.1
