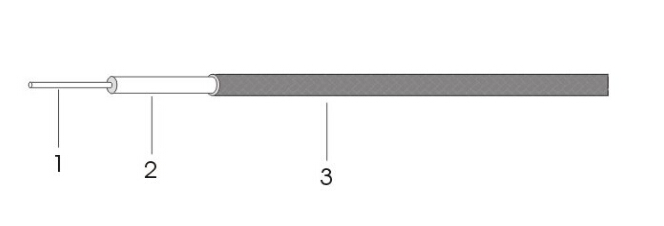

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   1.31
  2. Dielectric   PTFE   3.00

  3. Outer Conductor

  Tin Soaked Copper Braid   3.52

Electrical Characteristic

  Capacitance(pF/m)   136
  Impedance(ohm)   35
  Velocity of Propagation(%)   70
  Cutoff frequency(GHz)   31
  Time Delay(ns/m)   4.7

  Max Operating Voltage(kVrms)

  1.9

  Shielding Effectiveness up to 18GHz (dB)

  100

Mechanical Characteristic

  Min. Bending Radius Static(mm)   8
  Min. Bending Radius Repeated(mm)   40

  Operating Temp.(℃)

  -55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  0.5   0.29   552.4
  1.0   0.41   384.6
  5.0   0.99   161.5
  10.0   1.48   109.2
  20.0   2.25   72.7
