Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Brass   Gold Plating
  Frequency Range   DC~40GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   335V rms     Body and Other Metal Parts   Brass/Stainless Steel   Gold plating / Passivation
  Dielectric Strength Voltage   1000V rms     Elastic Part     Beryllium Copper   Gold Plating
  VSWR   ≤1.05+0.08f(GHz)     Insulator     PTFE or LCP
  Contact Resistance   ≤3mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤2mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥5000MΩ     Durability     500 times
  Insertion Loss   ≤0.06√f(GHz)dB

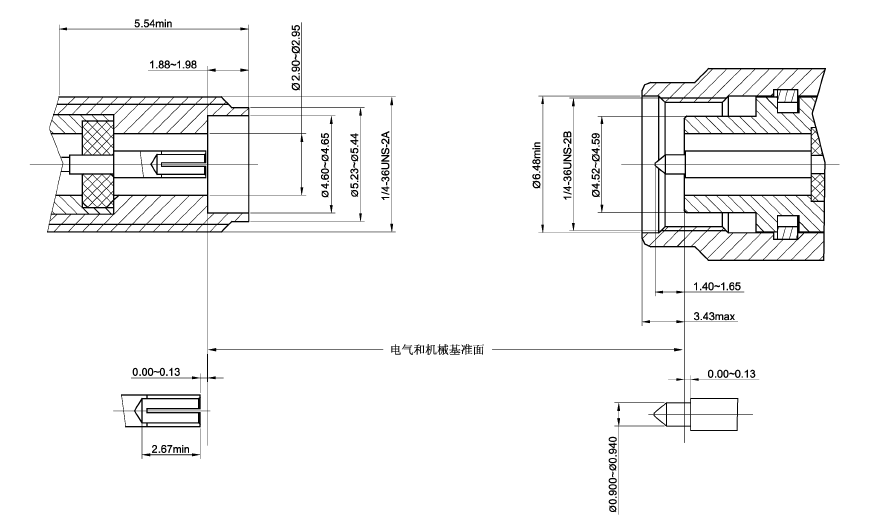

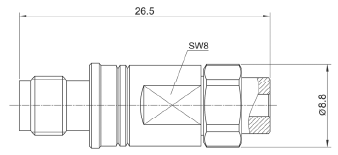

Model

  Part Number  Cable Type  Notes
  SMK-K102   Gore 3506
  SMK-K204   Gore 3500

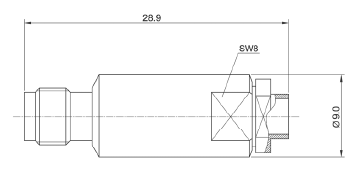

  Part Number  Cable Type  Notes
  SMK-K201   670-086 SFT-50-2-51
  SMK-K209   Gore 3507
  SMK-K301   Semflex 160S
  SMK-K302   SFT-50-3-51
