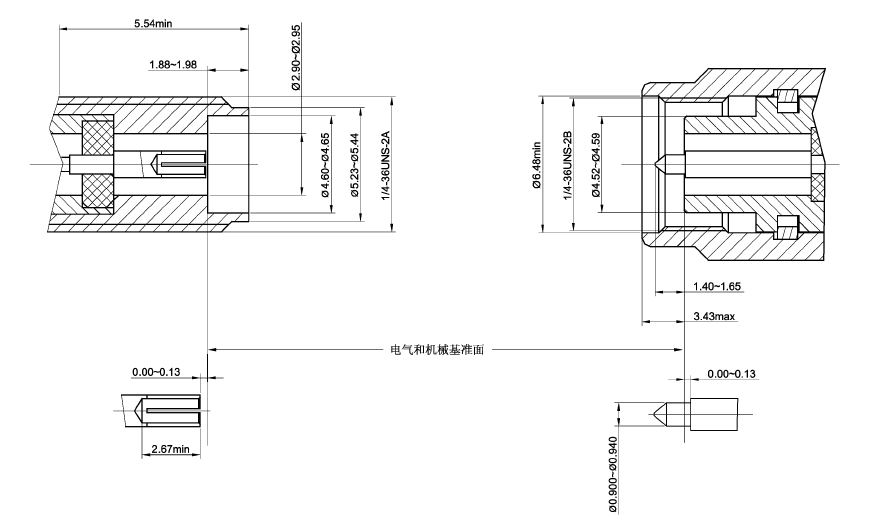

SMK

Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Brass   Gold Plating
  Frequency Range   DC~40GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   335V rms     Body and Other Metal Parts   Brass/Stainless Steel   Gold plating / Passivation
  Dielectric Strength Voltage   1000V rms     Elastic Part     Beryllium Copper   Gold Plating
  VSWR   ≤1.05+0.08f(GHz)     Insulator     PTFE or LCP
  Contact Resistance   ≤3mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤2mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥5000MΩ     Durability     500 times
  Insertion Loss   ≤0.06√f(GHz)dB



Model

  Part Number  Pin(Diameter)  Notes

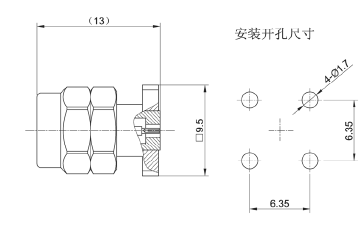

  SMK-JFD1   0.30
  SMK-JFD2   0.38
  SMK-JFD3   0.45
  SMK-JFD4   0.50



  Part Number  Pin(Diameter)  Notes

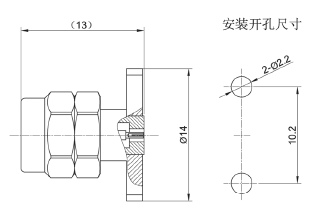

  SMK-JFD5   0.30
  SMK-JFD6   0.38
  SMK-JFD7   0.45
  SMK-JFD8   0.50



  Part Number  Pin(Diameter)  Notes

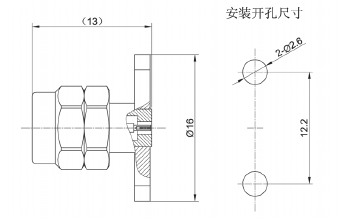

  SMK-JFD9   0.30
  SMK-JFD10   0.38
  SMK-JFD11   0.45
  SMK-JFD12   0.50



  Part Number  Pin(Diameter)  Notes

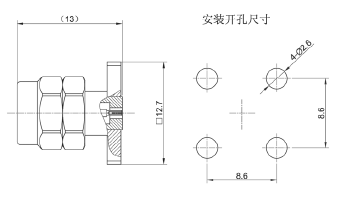

  SMK-JFD13   0.30
  SMK-JFD14   0.38
  SMK-JFD15   0.45
  SMK-JFD16   0.50
