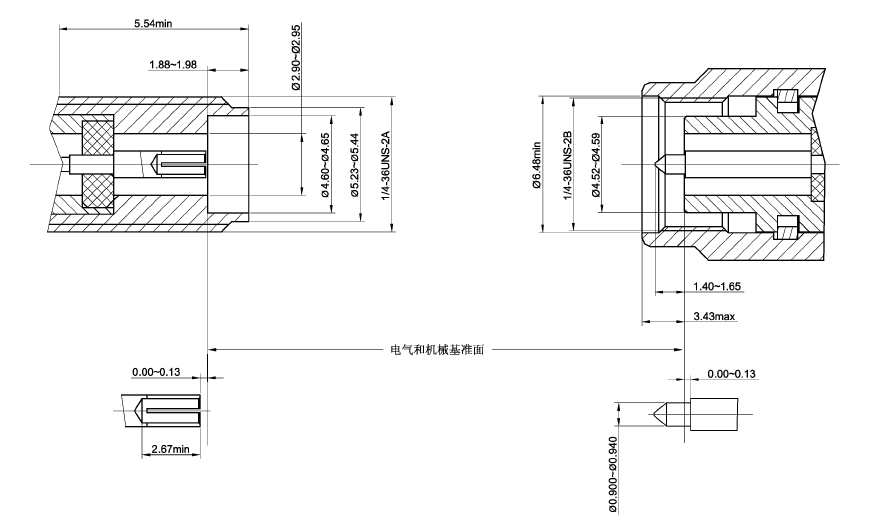

Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Brass   Gold Plating
  Frequency Range   DC~40GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   335V rms     Body and Other Metal Parts   Brass/Stainless Steel   Gold plating / Passivation
  Dielectric Strength Voltage   1000V rms     Elastic Part     Beryllium Copper   Gold Plating
  VSWR   ≤1.05+0.08f(GHz)     Insulator     PTFE or LCP
  Contact Resistance   ≤3mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤2mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥5000MΩ     Durability     500 times
  Insertion Loss   ≤0.06√f(GHz)dB



Model

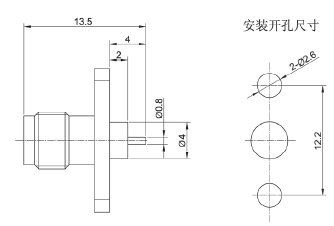

  Part Number  Pin(Diameter)  Notes
  SMK-KFD01   0.30
  SMK-KFD02   0.38
  SMK-KFD03   0.45
  SMK-KFD04   0.50

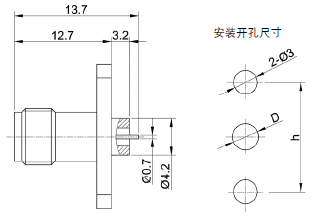

  Part Number  Pin(Diameter)  Notes
  SMK-KFD05   0.30
  SMK-KFD06   0.38
  SMK-KFD07   0.45
  SMK-KFD08   0.50

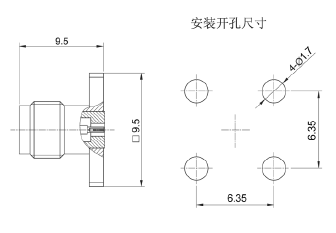

  Part Number  Pin(Diameter)  Notes
  SMK-KFD09   0.30
  SMK-KFD10   0.38
  SMK-KFD11   0.45
  SMK-KFD12   0.50

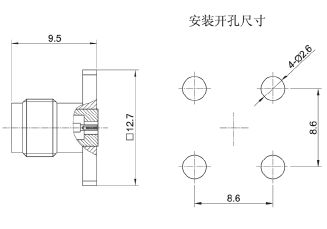

  Part Number  Pin(Diameter)  Notes
  SMK-KFD13   0.30
  SMK-KFD14   0.38
  SMK-KFD15   0.45
  SMK-KFD16   0.50

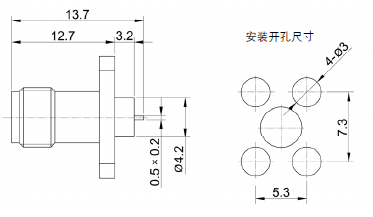

  Part Number  Pin(Diameter)  Notes
  SMK-KFD17

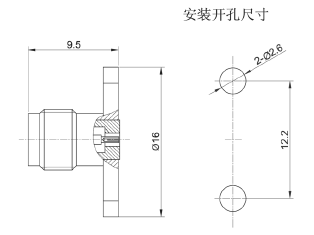

  Part Number  Pin(Diameter)  Notes
  SMK-KFD18



  Part Number  Pin(Diameter)  Notes
  SMK-KFD19
