UL&CSA Commercial Wire
UL1212,UL1213,CSA 150V wires have thin-wall extruded PTFE insulation for weight and space savings. The thin-wall insulation of these wires restricts their usage to low-voltage applications. These wires are ideal for internal wiring of appliances,electronic equipment and other applications.
Performance：
Voltage rating: Not specified by UL; 150V for CSA.
Temperature rating: UL1212：80 ℃,UL1213：150 ℃,CSA: 200 ℃

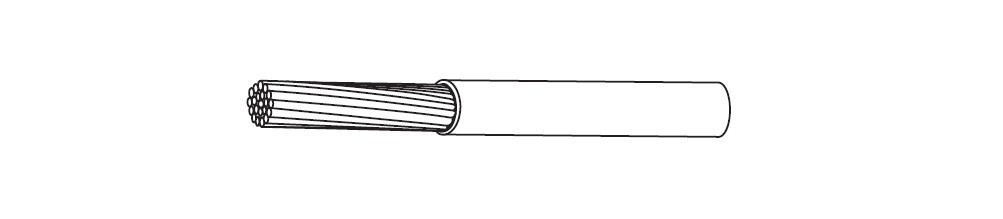

Construction Details:
Insulation：Extruded PTFE, .008"(.20mm)wall thickness.
Conductor: Sliver plated copper or other conductor as bottom mentioned
Colors: Available in 10 standard colors as bottom mentioned.
Indentification: Surface printed as required by UL or CSA.
Dimension,Resistance and Weights-UL 1212,1213 wires
| Style | AWG size | Stranding | Conductor Diameter(mm) | Insulation Diameter(mm) | Weight (kg/1000M) | Conductor Resistance (max., Ω/km) | KingsignalP/N |
|---|---|---|---|---|---|---|---|
|
1212/1213 |
16 | 19/29 | 1.35 | 1.96 | 14.4 | 14.8 | 16-S-1929 |
| 1212/1213 | 16 | 19/.0117 | 1.42 | 1.93 | 14.9 | 14.8 | 16-S-19/0117 |
| 1212/1213 | 18 | 19/30 | 1.19 | 1.73 | 11.2 | 19.0 | 18-S-0730 |
| 1212/1213 | 18 | 7/26 | 1.22 | 1.73 | 11.2 | 19.7 | 18-S-0726 |
| 1212/1213 | 20 | 19/32 | 0.965 | 1.47 | 7.66 | 29.1 | 20-S-1932 |
| 1212/1213 | 20 | 7/28 | 0.965 | 1.47 | 7.52 | 31.4 | 20-S-0728 |
| 1212/1213 | 20 | 1/20 | 0.813 | 1.37 | 7.28 | 33.1 | 20-S-0120 |
| 1212/1213 | 22 | 19/34 | 0.762 | 1.27 | 5.22 | 48.5 | 22-S-1934 |
| 1212/1213 | 22 | 7/30 | 0.762 | 1.27 | 5.16 | 49.9 | 22-S-0730 |
| 1212/1213 | 22 | 1/22 | 0.635 | 1.17 | 4.55 | 54.1 | 22-S-0122 |
| 1212/1213 | 24 | 19/36 | 0.610 | 1.09 | 3.59 | 77.4 | 24-S-1936 |
| 1212/1213 | 24 | 7/32 | 0.610 | 1.09 | 3.59 | 78.4 | 24-S-0732 |
| 1212/1213 | 24 | 1/24 | 0.508 | 1.02 | 3.15 | 84.2 | 24-S-0124 |
| 1212/1213 | 26 | 19/38 | 0.483 | 0.965 | 2.59 | 122 | 26-S-1938 |
| 1212/1213 | 26 | 7/34 | 0.483 | 0.965 | 2.54 | 127 | 26-S-0734 |
| 1212/1213 | 26 | 1/26 | 0.406 | 0.889 | 2.22 | 134 | 26-S-0126 |
| 1212/1213 | 28 | 19/40 | 0.381 | 0.889 | 1.96 | 207 | 28-S-1940 |
| 1212/1213 | 28 | 7/36 | 0.381 | 0.889 | 1.96 | 203 | 28-S-0736 |
| 1212/1213 | 28 | 1/28 | 0.330 | 0.813 | 1.68 | 214 | 28-S-0128 |
| 1212/1213 | 30 | 19/42 | 0.305 | 0.813 | 1.53 | 315 | 30-S-1942 |
| 1212/1213 | 30 | 7/38 | 0.305 | 0.813 | 1.52 | 320 | 30-S-0738 |
| 1212/1213 | 30 | 1/30 | 0.254 | 0.737 | 1.28 | 341 | 30-S-0130 |
| 1212/1213 | 32 | 19/44 | 0.254 | 0.737 | 1.19 | 502 | 32-S-1944 |
| 1212/1213 | 32 | 7/40 | 0.229 | 0.737 | 1.17 | 544 | 32-S-0740 |
| 1212/1213 | 32 | 1/32 | 0.203 | 0.686 | 1.03 | 531 | 32-S-0132 |
| 1212/1213 | 34 | 7/42 | 0.191 | 0.711 | 1.00 | 846 | 34-S-0742 |
| 1212/1213 | 36 | 7/44 | 0.152 | 0.635 | 0.771 | 1351 | 36-S-0744 |
*CSA allows these strandings for electronic use only.
Colors available:0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Slate/Gray,9-White.
Order information:Specify Kingsignal Part No.,UL or CSA Style.,and Color.
Conductor Code: S-Sliver-plated copper, N-Nickel-plated copper, SH-Silver-plated high strength copper alloy conductor,NH-Nickel-plated high strength copper alloy conductor.
