UL&CSA Commercial Wire

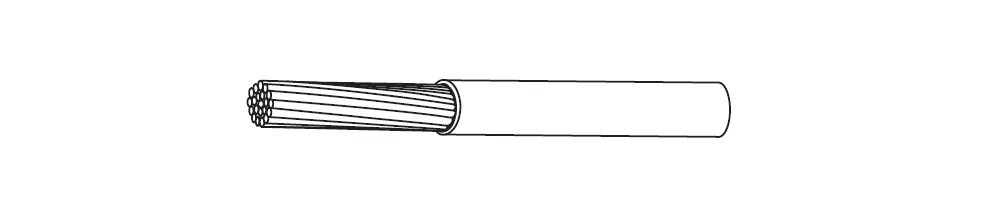

UL1371,UL1538 wires have thin-wall extruded PTFE insulation for weight and space savings. The thin-wall insulation of these wires restricts their usage to low-voltage applications. These wires are ideal for internal wiring of appliances,electronic equipment and applications.
Performance：
Voltage rating: Not specified by UL; UL1538:125V.
Temperature rating: 150 ℃
Construction Details:
Insulation: Extruded PTFE,
Wall Thickness: 8AWG:0.51mm,10-15AWG:0.33mm,16-19AWG:0.20mm,20-36AWG:0.14mm
Conductor: Sliver plated copper or other conductor as bottom mentioned
Colors: Available in 10 standard colors as bottom mentioned.
Indentification: Surface printed as required by UL or CSA.
Dimension,Resistance and Weights-UL 1371,1538 wires
| Style | AWG size | Stranding | Conductor Diameter(mm) | Insulation Diameter(mm) | Weight (kg/1000M) | Conductor Resistance (max., Ω/km) | KingsignalP/N |
|---|---|---|---|---|---|---|---|
|
1371/1538 |
8 | 133/29 | 4.11 | 5.31 | 102 | 2.16 | 8-S-13329 |
| 1371/1538 | 10 | 37/26 | 2.74 | 3.58 | 52.2 | 3.9 | 10-S-13726 |
| 1371/1538 | 12 | 19/25 | 2.13 | 3.05 | 36.9 | 5.94 | 12-S-1925 |
| 1371/1538 | 14 | 19/27 | 1.70 | 2.59 | 24.4 | 9.41 | 14-S-1927 |
| 1371/1538 | 16 | 19/29 | 1.35 | 1.93 | 14.5 | 14.9 | 16-S-1929 |
| 1371/1538 | 18 | 19/30 | 1.19 | 1.70 | 11.1 | 19 | 18-S-1930 |
| 1371/1538 | 20 | 19/32 | 0.965 | 1.32 | 6.95 | 29.1 | 20-S-1932 |
| 1371/1538 | 20 | 7/28 | 0.965 | 1.32 | 6.8 | 31.4 | 20-S-0728 |
| 1371/1538 | 22 | 19/34 | 0.762 | 1.12 | 4.6 | 48.5 | 22-S-1934 |
| 1371/1538 | 22 | 7/30 | 0.762 | 1.12 | 4.54 | 49.9 | 22-S-0730 |
| 1371/1538 | 24 | 19/36 | 0.610 | 0.965 | 3.14 | 77.4 | 24-S-1936 |
| 1371/1538 | 24 | 7/32 | 0.610 | 0.965 | 3.14 | 78.4 | 24-S-0732 |
| 1371/1538 | 26 | 19/38 | 0.483 | 0.864 | 2.26 | 122 | 26-S-1938 |
| 1371/1538 | 26 | 7/34 | 0.483 | 0.838 | 2.13 | 127 | 26-S-0734 |
| 1371/1538 | 26 | 1/26 | 0.406 | 0.737 | 1.8 | 134 | 26-S-0126 |
| 1371/1538 | 28 | 19/40 | 0.381 | 0.737 | 1.53 | 207 | 28-S-1940 |
| 1371/1538 | 28 | 7/36 | 0.381 | 0.711 | 1.47 | 203 | 28-S-0736 |
| 1371/1538 | 28 | 1/28 | 0.330 | 0.660 | 1.30 | 214 | 28-S-0128 |
| 1371/1538 | 30 | 19/42 | 0.305 | 0.660 | 1.15 | 315 | 30-S-1942 |
| 1371/1538 | 30 | 7/38 | 0.305 | 0.635 | 1.07 | 320 | 30-S-0738 |
| 1371/1538 | 30 | 1/30 | 0.254 | 0.584 | 0.927 | 341 | 30-S-0130 |
| 1371/1538 | 32 | 19/44 | 0.254 | 0.584 | 0.851 | 502 | 32-S-1944 |
| 1371/1538 | 32 | 7/40 | 0.229 | 0.559 | 0.772 | 544 | 32-S-0740 |
| 1371/1538 | 32 | 1/32 | 0.203 | 0.533 | 0.716 | 531 | 32-S-0132 |
| 1371/1538 | 34 | 7/42 | 0.191 | 0.508 | 0.611 | 897 | 34-S-0742 |
| 1371/1538 | 34 | 1/34 | 0.160 | 0.483 | 0.541 | 939 | 34-S-0134 |
| 1371/1538 | 36 | 7/44 | 0.152 | 0.483 | 0.505 | 1360 | 36-S-0744 |
*CSA allows these strandings for electronic use only.
Colors available:0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Slate/Gray,9-White.
Order information:Specify Kingsignal Part No.,UL or CSA Style.,and Color.
Conductor Code: S-Sliver-plated copper, N-Nickel-plated copper, SH-Silver-plated high strength copper alloy conductor,NH-Nickel-plated high strength copper alloy conductor.
