Circular Electrical Connector

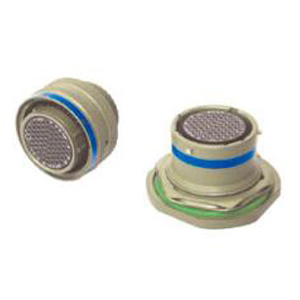

GJB599ⅠSeries (MIL-DTL-38999ⅠSeries) Electrical Connector



Product Description:

Comply with MIL-DTL-38999K I series
Quick bayonet coupling, small size, light weight and high density
EMI/RFI shielding
Removable crimp contact with scoop-proof design
Various receptacle mounting: Box mounting, wall-through mounting, front mounting, rear mounting and jam nut mounting
Withstand strong vibration
Standard back accessories, comply with GJB1784; and special back shell (Ti-Ni ring) for shielding cable 9 shell sizes, 74 polarization and various modification types
5 key leading structure to avoid mismating

Technical Performance Mechanical
Shell: Aluminum alloy/stainless steel
Plating:
B class: olive green cadmium plating
E class: stainless steel passive
F class: electroless nickel plating
Insulator: thermoset plastic
Grommet and seal: Silicon rubber
Contact: Gold-plated copper alloy, crimping, soldering, PCB
Endurance: 500 cycles
Vibration:
Sinusoidal vibration: frequency 10-2000Hz, acceleration: 294m/s2
Random vibration: Frequency 100-1000Hz, power spectral density: 1g2/Hz
impact: as 3ms half sinusoidal, peak value of acceleration: 300g




Electrical
Contact resistance and rating current:

Contact size

Operation DIA
mm

Contact Resistance

Rating Current
A

22D

Φ0.76

≤12

5

20#

Φ1.00

≤5

7.5

16#

Φ1.60

≤2.5

13

12#

Φ2.40

≤1.5

23

10#

Φ3.15

≤1.0

40

EMI Shielding:
100MHz
1GHz: Min attenuation 85dB
1GHz
10GHz: Min attenuation 50dB

Withstanding voltage: V

Service Rating

M

N

Sea level

1300

1000

1800

2300

21000m

800

600

1000

1000


Insulation resistance:
Normal≥5000mΩ   damp condition  ≥100mΩ

Electrical continuity between shells:
B class≤2.5mΩ   F class≤1.0mΩ   E class≤50mΩ


Environmental
Operating temperature:
B class:-65
175
E,F class:-65
200
Salt spray: according to method 1001 GJB1217,
B class 500h,
E class1000h,
F class 48h
Relative humidity: 98% at 40

Operating height: ≤30480m
Anti-moisture, salt spray, mould, rain, dust
