Circular Electrical Connector

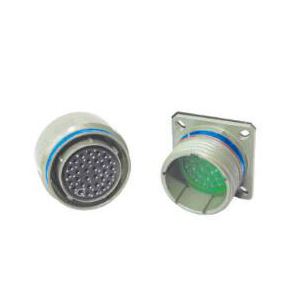

GJB599ⅢSeries (MIL-DTL-38999 Ⅲ Series) Electrical Connector

Product Description:
Comply with GJB599A (MIL-DTL-38999K)
series
Quick bayonet coupling
Smaller size, lighter weight , shorter shell of the series
EMI/RFI shielding
Removable crimp contact with scoop-proof function


Technical Performance
Shell: Aluminum alloy, stainless steel
Plating:
B class: olive green cadmium plating
E class: stainless steel passive
F class: electroless nickel plating
Insulator: thermoset plastic
Grommet and seal: Silicon rubber
Contact: Gold-plated copper alloy, crimping, soldering, PCB
Endurance: 500 cycles
Vibration: Random vibration: Frequency 100-1000Hz, power spectral density: 1g2/Hz
impact: as 3ms half sinusoidal, peak value of acceleration: 300g


Electrical
Contact resistance and rating current:

Contact size

OperationDIA
mm

Contact Resistance

Rating Current
A

22D

Φ0.76

≤12

5

20#

Φ1.00

≤5

7.5

16#

Φ1.60

≤2.5

13

12#

Φ2.40

≤1.5

23

EMI Shielding:
100MHz
1GHz: Min attenuation 45dB



Withstanding voltage: V

Service Rating

M

Sea level

1300

1800

2300

21000m    800

1000

1000



Insulation resistance:
Normal≥5000mΩ  damp condition  ≥100mΩ

Electrical continuity between shells:
B class≤2.5mΩ   F class≤1.0mΩ   E class≤50mΩ

Environmental
Operating temperature:
B class:-65
175
E,F class:-65
200
Salt spray: according to method 1001 GJB1217, B class 500h, E class1000h, F class 48h
Relative humidity: 98% at 40

Operating height: ≤30480m
