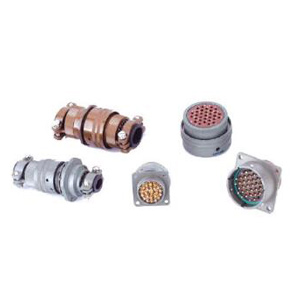

Circular Electrical Connector

GJB598ⅠSeries (MIL-C-26482ⅠSeries) Electrical Connector

Product Description:

 Comply with GJB598 (MIL-C-26482) I series

Quick bayonet coupling
Soldering contact
Small volume, high density and excellent environmental performance
Application: widely used in military and industry fields


Technical Performance
Mechanical

Shell: Aluminum alloy/stainless steel
Plating:
Omit: olive drab cadmium plating, conductive shell
L class: electroless nickel plating, conductive shell
A class: black anodized plating, non-conductive shell
S class: stainless steel passive, conductive shell
B class: olive green cadmium plating, conductive shell
BW class: olive breen cadmium plating, conductive shell
Insulator: neoprene rubber
Grommet and seal: Silicon rubber
Contact: Gold-plated copper alloy
Random vibration: Frequency 100-2000Hz, acceleration: 147 m/s2
impact: acceleration: 490 m/s2
Endurance: 500 cycles


Electrical
Contact resistance and rating current:

Contact size

Operation DIA
mm

Contact Resistance

Rating Current
A

20#

Φ1.0

≤5

7.5

16#

Φ1.6

≤2.5

13

Operating voltage and withstanding voltage: V

Service Rating

Operating voltage

Withstanding voltage

Sea level

600

1000

1500

2300

21336m

300

450

375

500



Remarks: Different inset arrangement has different service rating. Please see the insert arrangement table.

Insulation resistance:≥5000mΩ at 25
≥3mΩ at 125


Environmental
Operating temperature: -55
125
Relative humidity: 95±4% at 40

Salt spray: cadmium plating: 500 hours   nickel plating: 48 hours
Hermetic:
Grommet seal: different pressure 2×105Pa , leakage attenuation 4.6×102Pa cm3/s
Glass seal: different pressure 1×105Pa, leakage attenuation 4.6×102Pa cm3/s
