Circular Electrical Connector

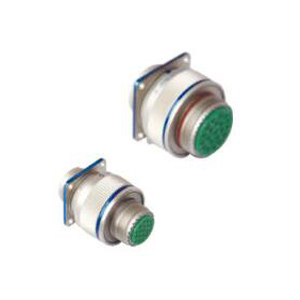

GJB599ⅣSeries (MIL-DTL-38999ⅣSeries) Electrical Connector



Product Description:
High density, up to 128 contacts (maximum)
Various contact types: 22D#, 20#,16#,12# power contact, 16#,12# shielding contact, 12# coaxial contact, 8# twinax contact, 8# quadrax contact, 12#,16# optic contact (different contact are interchangeable with each other)
Straight mating 90°rotation locking structure
100% scoop-proof
With grounding spring to strengthen EMI/RFI shielding
Various insert arrangement: high and low frequency mixed, high frequency, low frequency, optic fiber, optical and electrical mixed


Technical PerformanceMechanical
Vibration:
sinusoidal: frequency 10-2000Hz, acceleration: 588m/s2
Random: Frequency 100-1000Hz, power spectral density: 1g2/Hz
impact: as 3ms half sinusoidal, peak value of acceleration: 300g
Endurance: 500 cycles


Electrical
Contact resistance and rating current:

Contact size

Operation DIA
mm

Contact Resistance

Rating Current
A

22D

Φ0.76

≤14.6

5

20#

Φ1.00

≤7.5

7.5

16#

Φ1.60

≤3.7

13

12#

Φ2.40

≤1.83

23

10#

Φ3.15

≤1.0

33

8#

Φ3.60

≤0.57

46

Insulation resistance:
Normal≥5000mΩ  high temperature≥1000mΩ   damp condition  ≥100mΩ

Withstanding voltage: V

Service Rating

M

N

Sea level

1300

1000

1800

2300

21336m

800

600

1000

1000



Remarks: Different inset arrangement has different service rating. Please see the insert arrangement table.


Environmental
Operating temperature:
W class:-65
175
Other class:-65
200
Salt spray: cadmium plating: 500 hours   nickel plating: 48 hours
Ti alloy: 2000 hours   stainless steel: 1000hours
Moist proof: according to method GJB150.10, 28 days
Fluid resistant: Various fuels, coolant, solvent
