Circular Electrical Connector

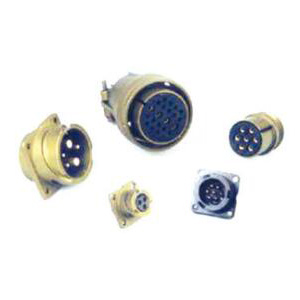

GJB600 Series (MIL-DTL-5015 Series) Circular Bayonet Connector

Product Description:
Comply with GJB600
MIL-DTL-5015standard.
Quick bayonet coupling
Silver plated contacts
Soldering termination

Technical Performance
Operating temperature: -55
125
Contact resistance and rating current:

Contact size

Rating CurrentA

Contact ResistancemΩ

16#

13

≤3.77

12#

23

≤1.8

8#

46

≤0.56

4#

80

≤0.28

Insulation resistance:≥5000 mΩ
Salt spray: 48 hours
Vibration: 10~2000Hz
147m/s2
Shock: 490m/s2
Endurance: 500 cycles
withstanding voltage

Service rating

withstanding voltage V rms

Sea level

21336m

Instrument
A
D
E
B
C

1000
2000
2800
3500
4500
7000

260
360
400
440
480
560
