Primary Technical Characteristics
Elecreical Performance | Material and Mechanical Performance |
Characteristic Impedance |
50Ω |
|
Center Contact |
Pin |
Beryllium Copper |
Gold Plating |
Frequency Range |
DC~26.5GHz |
|
Socket |
Beryllium Copper |
Gold Plating |
Rated Voltage |
335V rms |
|
Body and Other Metal Parts |
Brass/Stainless Steel |
Gold plating / Passivation |
Dielectric Strength Voltage |
500V rms |
|
Elastic Part |
|
Beryllium Copper |
Gold Plating |
VSWR |
≤1.10 |
DC~3GHz |
Insulator |
Unthreaded Hole |
PTFE |
|
≤1.15 |
3GHz~6GHz |
Meshing Force & separating force |
Half Escapement |
9N max |
2.2N |
≤1.30 |
6GHz~26.5GHz |
Escapement |
45N max |
9N min |
Contact Resistance |
≤6.0mΩ |
Center Contact |
Unthreaded Hole |
68N max |
22N min |
≤2.0mΩ |
Outer Contact |
Durability |
Half Escapement |
1000次 |
|
Insulation Resistance |
≥5000MΩ |
|
Escapement |
500次 |
|
Insertion Loss |
≤0.05√f(GHz)dB |
|
|
100次 |
|
Model
Part Number | Cable Type | Notes |

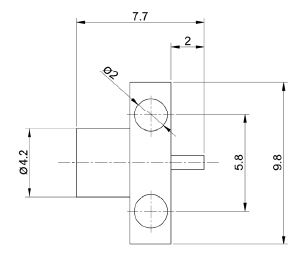

SMP-JFD15-S/L/F |
|
|
Part Number | Cable Type | Notes |

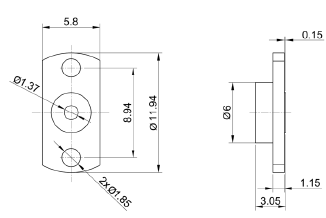

SMP-JFD19-L |
|
|
Part Number | Cable Type | Notes |

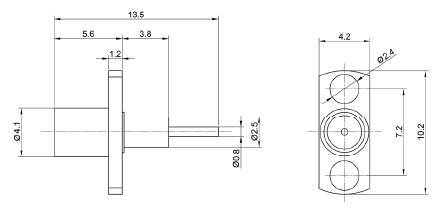

SMP-JFD21 |
|
|
Part Number | Cable Type | Notes |

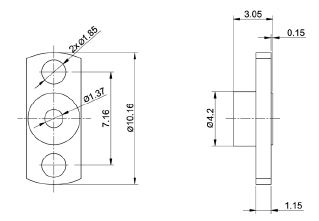

SMP-JFD22 |
|
|
Part Number | Cable Type | Notes |
SMP-JFD23 |
|
|
