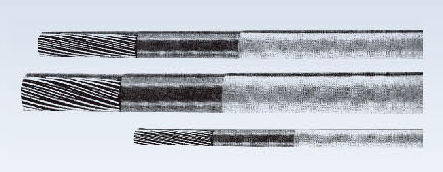

Aviation Military Installation Wire

MIL-W-22759/86 More Products

Home > Produtos > frequência baixa > Low Frequency Cable

Performance

Rated Voltage	600V
Rated Temperature	83: -55 to +200℃

Construction

Dielectric

AWG Size	Layer 1	Layer 2	Layer 3	Layer 4
4/0 to 4	PTFE tape	PTFE/Polyimide/PTFE tape	PTFE tape	PTFE tape
8 to 6	PTFE tape	PTFE/Polyimide/PTFE tape	PTFE tape
10 to 26	PTFE/Polyimide/PTFE tape	PTFE tape

Conductor

Sliver plated copper

Size, Resistance and Weight -- M22759/86(Sliver plated copper)

Model	AWG Size	Stranding	Conductor Diameter (mm)		Insulation Diameter (mm)		Weight (kg/km)	Conductor Resistance (Max., Ω/km)
Model	AWG Size	Stranding	Min.	Max.	Min.	Max.	Weight (kg/km)	Conductor Resistance (Max., Ω/km)
M22759/86-04	4/0	2109/30	14.35	15.37	14.99	16.0	1012.9	0.177
M22759/86-03	3/0	1665/30	12.70	13.72	13.46	14.2	806.1	0.223
M22759/86-02	2/0	1330/30	11.18	12.07	12.07	12.8	642.1	0.279
M22759/86-01	0	1045/30	10.03	10.80	10.67	11.4	511.5	0.354
M22759/86-1	1	817/30	9.30	9.65	9.86	10.4	405.4	0.456
M22759/86-2	2	665/30	8.13	8.64	8.74	9.25	331.5	0.558
M22759/86-4	4	133/25	6.35	6.68	7.01	7.32	209.9	0.866
M22759/86-6	6	133/27	5.03	5.28	5.56	5.82	131.1	1.37
M22759/86-8	8	133/29	4.01	4.22	4.57	4.78	85.5	2.16
M22759/86-10	10	37/26	2.69	2.79	3.10	3.23	46.4	3.90
M22759/86-12	12	37/28	2.12	2.22	2.54	2.67	29.2	6.32
M22759/86-14	14	19/27	1.64	1.74	2.06	2.18	18.6	9.45
M22759/86-16	16	19/29	1.31	1.38	1.73	1.85	12.7	14.8
M22759/86-18	18	19/30	1.16	1.23	1.55	1.65	9.9	19.0
M22759/86-20	20	19/32	0.93	0.98	1.30	1.40	5.7	30.1
M22759/86-22	22	19/34	0.72	0.77	1.09	1.19	4.4	49.5
M22759/86-24	24	19/36	0.57	0.62	0.97	1.07	3.0	79.7
M22759/86-26	26	19/38	0.44	0.49	0.84	0.94	2.1	126
