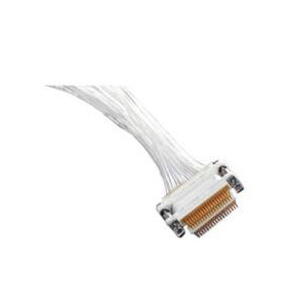

Micro Rectangular Electrical Connector

J30 Series Micro Miniature Connector


Introduction:
Conform to GJB2446(equivalent to MIL-C-83513)
Twist pin used on male contact
High density contact, 1.27mm pattern
Using plastic shell, equivalent to American MD Series
9~74 contacts, 8 different types
Termination can be modified to adjust to contact pattern for PCB



Technical Performance:
Operating temperature: -55
~+125
Relative humidity: 95% at 40

Vibration: Frequency 10~2000Hz Acceleration 196m/s2
Impact: Acceleration 735m/s2
Rated current: 3A
Withstanding voltage: 800V(normal)≥100mΩ
heat & damp
Contact resistance: ≤10mΩ
Durability: 500 cycles
