Micro Rectangular Electrical Connector

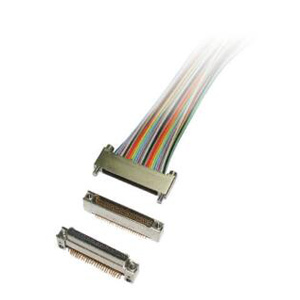

J70 (A) Series Micro Rectangular Connector

Introduction:
Conform to MIL-DTL-321 39A
Male contact use elastic wire spring pin
High density, 0.635mm space
Metal shell: 10 types from 9 cores to 85 cores
Plug and receptacle: J70A series use the metric system thread, J70 series use British system thread
Termination methods: crimping, surface mounting, right-angle PCB, straight PCB, astride surface mounting



Technical Performance:
Operating temperature: -55
~+125
Relative humidity: 95% at 40

Vibration: frequency 10~2000Hz acceleration: 196 m/s2
Impact: acceleration 980m/s2
Rating current: 1A
Withstanding voltage: normal 250V damp condition 100V
Insulator resistance: normal≥5000mΩ 100V DC
Contact resistance: ≤0.06Ω
Endurance: 200 cycles
