Micro Rectangular Electrical Connector

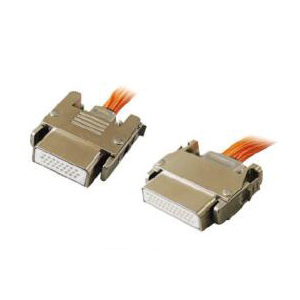

J24H Series Micro Rectangular Electrical Connector

Introduction:
Conform to GJB2446
Elastic twisted wire pin and rigid socket, reliable connection
Metallic shielding shell with cable clamps and locking devices
Various termination types: crimp, solder, straight PCB, right-angle PCB, etc
Plug and receptacle can be loaded with pins or sockets
Contact number: 9, 15, 19, 25, 26, 37, 38, 51, 52 and 74



Technical Performance:
Operating temperature: -55
~+125
Relative humidity: +40
, 98%
Vibration: 10~2000Hz, 254 m/s2
Random vibration: power chart density 0.4G2/Hz, RMS23.1G
High altitude: 4KPa
Impact: 980 m/s2
Contact resistance: ≤9mΩ
Rated current: 5A
Insulation resistance: ≥1000mΩ
9, 19, 25, 37, 52, 74 cores
                  ≥5000mΩ
15, 26, 38, 51 cores
Withstanding voltage: 800V (9, 19, 25, 37, 52, 74 cores)
                  1000V (15, 26, 38, 51 cores)
Durability: 1000 cycles
