Feature
• Soft, flexible, easy to handle.
• Suitable for pigtail and jumper wire.
• For optical connection in optical communication machine room, optical distribution frame, optical device and machine.
• Good mechanical and environmental property.
• Excellent flame retarding and stripping performance.

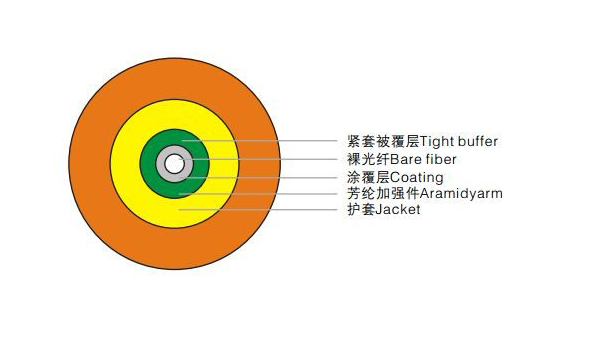

• Tight buffer material can be flame retardant PVC, LSZH flame retardant polyolefin, TPU or other agreed one.
• Customized design is available.
Technical Parameter
| Fiber Count | Cable Size (mm) | Cable Weight (kg/km) | Tensile Load (N) | Crush Load (N/100mm) | Temperature Range (℃) |
||
|---|---|---|---|---|---|---|---|
| Long-term | Short-term | Long-term | Short-term | ||||
| 1 | 1.6 | 2.2 | 40 | 80 | 100 | 500 | -20~+60 |
| 1 | 1.8 | 2.7 | 40 | 80 | 100 | 500 | |
| 1 | 2.0 | 3.4 | 60 | 100 | 100 | 500 | |
| 1 | 2.4 | 5.1 | 60 | 100 | 100 | 500 | |
| 1 | 2.8 | 6.6 | 80 | 150 | 100 | 500 | |
| 1 | 3.0 | 7.1 | 80 | 150 | 100 | 500 | |
Note：1. Minimum bend radius: for B1.1, B1.3, B4 single mode fiber and multi-mode fiber, 20D under dynamic bending and
10D under static bending; for B6 fiber, 10D (dynamic) and 5D (static). (D is overall diameter of round cable)
2．All the data in the table are for reference are subject to change without notification
