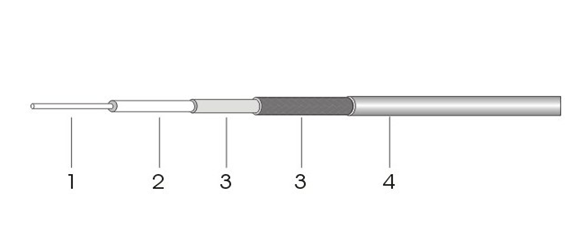

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Solid Copper   1.63
  2. Dielectric   Physical Foam Polyethylene   7.11
  3. Outer Conductor   Bonded Aluminum Foil+ Aluminum Braid   Nom.7.80
  4. Jacket

  PVC or Polyethylene

  10.03

Electrical Characteristics

  Capacitance(pF/m)     52
  Impedance(ohm)     75
  Velocity of Propagation(%)     85
  Shielding Effectiveness(>dB)     80
  Max Operating Voltage(KVrms)
  4.0
  Return Loss(≥dB)   VHF
  UHF
  20
  20

Mechanical and Environmental Characteristics

  Operating Temp.(℃)   PVC
  PE
  -25 to +70
  -40 to +80
  ROHS     Compliant

Attenuation

  Frequency(MHz)  Attenuation(dB/100m)
  50   3.02
  100   4.32
  200   6.05
  550   10.40
  750   12.40
  800   12.95
  1000   14.70
