Micro Coaxial Cable
Micro Coaxial Cable
42AWGx132C 60PF More Products
- · 40AWGx134C 110PF
- · 40AWGx135C 50PF
- · 40AWGx132C 110PF
- · 40AWGx132C 90PF
- · 40AWGx132C 52PF
- · 40AWGx82C 110PF
- · 40AWGx68C 50PF
- · 41AWGx132C 50PF
- · 42AWGx196C 50PF
- · 42AWGx192C+32AWG×14C 110PF
- · 42AWGx132C 60PF
- · 42AWGx132C 52PF
- · 42AWGx128C 110PF
- · 43AWGx200C 60PF
- · 44AWGx33C 60PF
- · Mic 1.37
- · Mic 1.32DTA
- · Mic 1.13
- · Mic 0.98
- · 40AWG
- · 42AWG

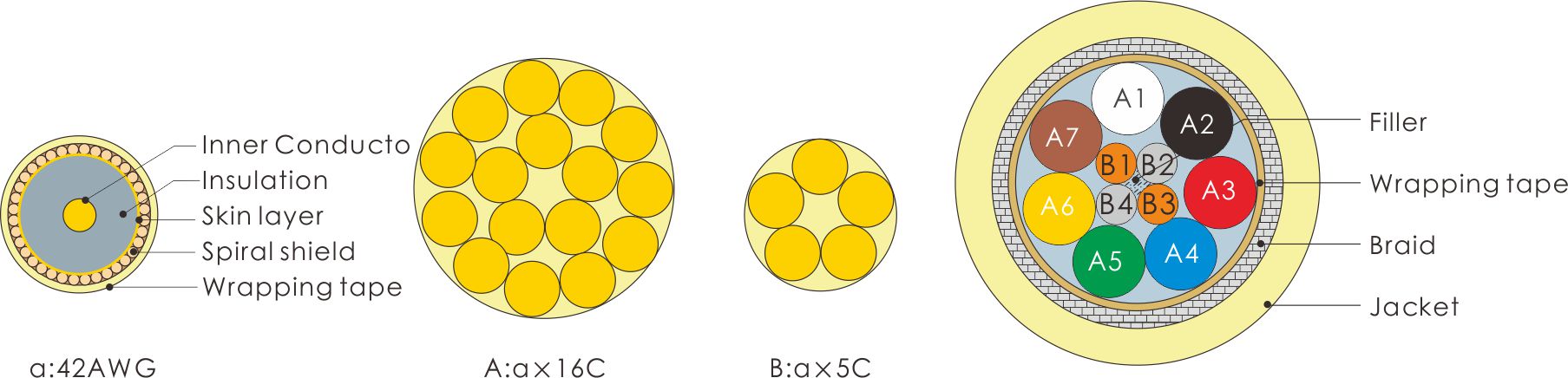

Construction And Material
| ITEM | A (42AWG x 16C) | B (42AWG x 5C) | |
| Core No. | 132 | ||
| Inner Conductor | Material | Silver plated copper alloy | |
| Composition (No./mm) | 7/0.025 | ||
| Diameter (mm) | 0.075 | ||
| Insulation | Material | White Foamed PTFE | |
| Thickness (mm) | 0.09 | ||
| Diameter(mm) | 0.24 | ||
| Skin layer | Material | Pink Polyester tape | |
| Thickness | 0.01 | ||
| Spiral shield | Material | Tinned copper alloy | |
| Diameter(mm) | 0.03 | ||
| Coaxial Tape | Material | Polyester tape | |
| Color | B1~B4: Orange, Gray, Orange, Gray; A1~A7: White, Black, Red, Blue, Green, Yellow, Brown |
||
| Thickness(mm) | 0.02 | ||
| Diameter(mm) | 0.34 | ||
| Twisting | First layer | a x 5 | a x 5 |
| Second layer | a x 11 | / | |
| Filler | Material | kevlar | |
| Cable assembly | First layer | B x 4 | |
| Second layer | A x 7 | ||
| Diameter | Nom. 4.9 | ||
| Wrapping tape | Material | PTFE tape | |
| Braid Shield | Material | Tinned tinsel copper | |
| Thickness(mm) | 0.25 | ||
| Coverage(%) | 95(min.90) | ||
| Jacket | Material | Ivory PVC, medical grade | |
| Nom.Thickness(mm) | 0.7 | ||
| Diameter(mm) | 7.0±0.3 | ||
Properties
| Item | Standard Value |
| Rating temperature(℃) | 60 |
| Rating voltage(V) | 30 |
| Conductor Resistance(Ω/km@20℃) | max.7370 |
| Insulation Resistance(MΩ-km@20℃) | min.1000 |
| Characteristic Impedance(Ω@10MHz) | Nom. 75 |
| Capacitance(pF/m@1kHz) | Nom. 60 |
| Dielectric Strenth(AC V/1min) | 500@Inner~Outer Conductor |
