Micro Coaxial Cable
Micro Coaxial Cable
40AWGx82C 110PF More Products
- · 40AWGx134C 110PF
- · 40AWGx135C 50PF
- · 40AWGx132C 110PF
- · 40AWGx132C 90PF
- · 40AWGx132C 52PF
- · 40AWGx82C 110PF
- · 40AWGx68C 50PF
- · 41AWGx132C 50PF
- · 42AWGx196C 50PF
- · 42AWGx192C+32AWG×14C 110PF
- · 42AWGx132C 60PF
- · 42AWGx132C 52PF
- · 42AWGx128C 110PF
- · 43AWGx200C 60PF
- · 44AWGx33C 60PF
- · Mic 1.37
- · Mic 1.32DTA
- · Mic 1.13
- · Mic 0.98
- · 40AWG
- · 42AWG

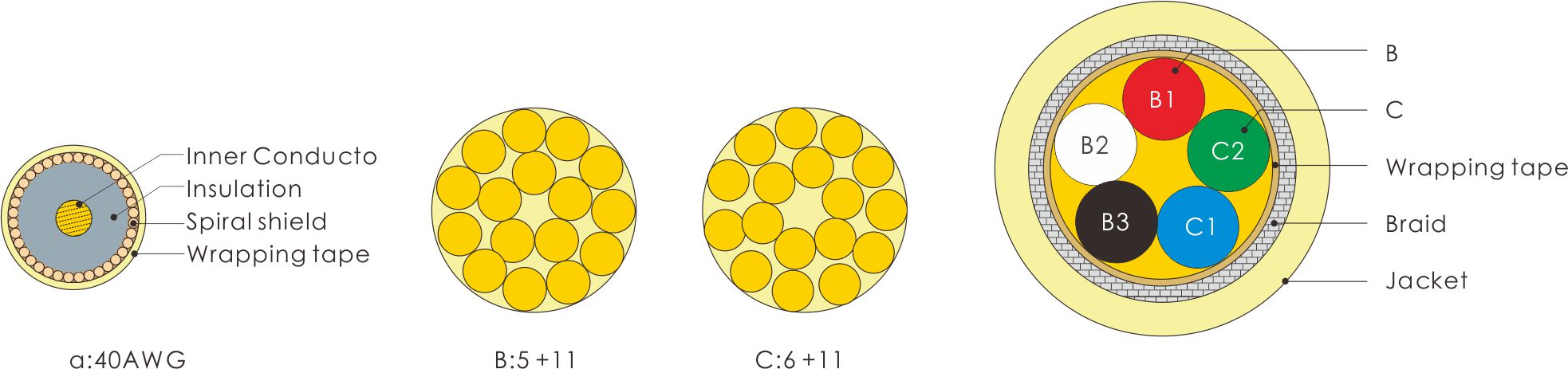

Construction And Material
| ITEM | A (40AWG x 16C) | B (40AWG x 17C) | |
| Core No. | 82 | ||
| Inner Conductor | Material | Tinned copper alloy wire | |
| Composition(No./mm) | 7/0.03 | ||
| Diameter(mm) | 0.09 | ||
| Insulation | Material | PFA | |
| Thickness (mm) | 0.07 | ||
| Diameter(mm) | 0.23 | ||
| Spiral shield | Material | Tinned copper alloy | |
| Diameter(mm) | 0.03 | ||
| Overlap（%） | 50 | ||
| Coaxial Tape | Material | Polyester tape | |
| Color | B1~B3:Red,White,Black;C1~C2:Blue,Green | ||
| Diameter(mm) | 0.32 | ||
| Twisting | First layer | a x 5 | a x 6 |
| Second layer | a x 11 | a x 11 | |
| Cable assembly | First layer | B×3+C×2 | |
| Diameter | Nom. 4.1 | ||
| Wrapping tape | Material | PTFE tape | |
| Braid Shield | Material | 0.08mmTinned copper wire | |
| Coverage(%) | 85 | ||
| Jacket | Material | PVC, White | |
| Nom.Thickness(mm) | 0.95 | ||
| Diameter(mm) | 7.0±0.3 | ||
Properties
| Item | Standard Value |
| Rating temperature(℃) | 60 |
| Rating voltage(V) | 30 |
| Conductor Resistance(Ω/km@20℃) | max.5000 |
| Insulation Resistance(MΩ-km@20℃) | min.1000 |
| Characteristic Impedance(Ω@10MHz) | Nom. 50 |
| Capacitance(pF/m@1kHz) | Nom. 110 |
| Dielectric Strenth(AC V/1min) | 500 |
