- · Mic 1.32DTA
- · Mic 1.13
- · Mic 0.98
- · 40AWG
- · 42AWG

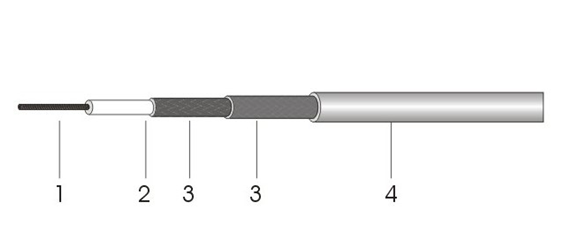

Construction Characteristic
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 7X0.08 |
| 2. Dielectric | FEP | 0.68 |
| 3. Outer Conductor | Double Tinned Copper Braid | Nom.1.10 |
| 4. Jacket |
FEP |
1.32 |
Electrical Characteristic
| Capacitance(pF/m) | 95.6 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 70 |
| Operating Frequency(GHz) | 6.0 |
| Max Operating Voltage(Vrms) | 1000 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +200 |
| Min Bending Radius(mm) | 4 |
| ROHS | Compliant |
Attenuation
| Frequency(GHz) | Attenuation(dB/m) |
|---|---|
| 1.0 | 2.3 |
| 2.0 | 3.1 |
| 3.0 | 3.9 |
| 4.0 | 4.6 |
| 5.0 | 5.1 |
| 6.0 | 5.8 |
