Micro Coaxial Cable
Micro Coaxial Cable
40AWGx68C 50PF More Products
- · 40AWGx134C 110PF
- · 40AWGx135C 50PF
- · 40AWGx132C 110PF
- · 40AWGx132C 90PF
- · 40AWGx132C 52PF
- · 40AWGx82C 110PF
- · 40AWGx68C 50PF
- · 41AWGx132C 50PF
- · 42AWGx196C 50PF
- · 42AWGx192C+32AWG×14C 110PF
- · 42AWGx132C 60PF
- · 42AWGx132C 52PF
- · 42AWGx128C 110PF
- · 43AWGx200C 60PF
- · 44AWGx33C 60PF
- · Mic 1.37
- · Mic 1.32DTA
- · Mic 1.13
- · Mic 0.98
- · 40AWG
- · 42AWG
Construction And Material

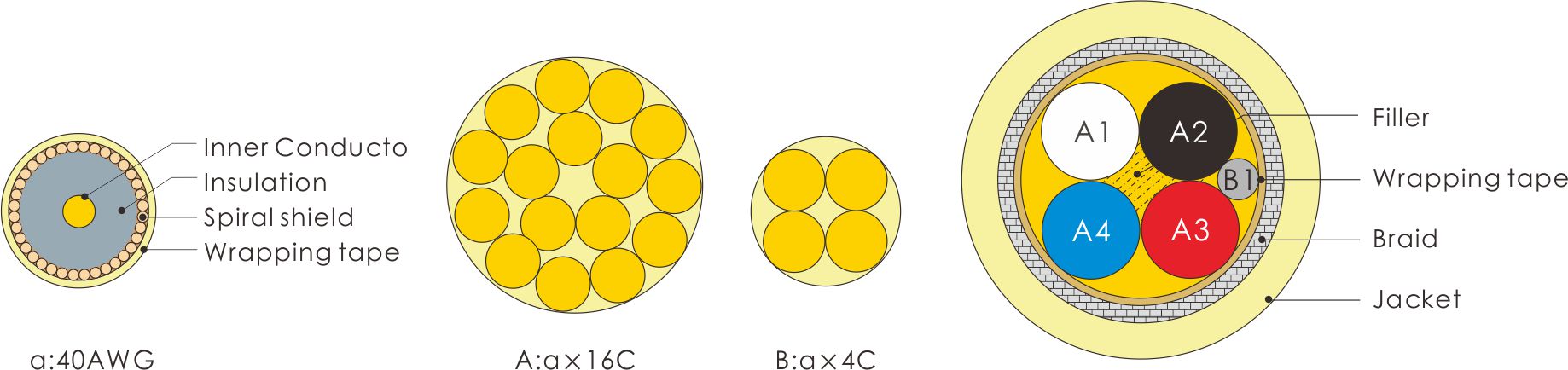

| ITEM | A (40AWG x 16C) | B (40AWG x 4C) | |
| Core No. | 68 | ||
| Inner Conductor | Material | Silver plated copper alloy | |
| Composition(No./mm) | 7/0.03 | ||
| Diameter(mm) | 0.09 | ||
| Insulation | Material | White Foamed PTFE | |
| Thickness (mm) | 0.13 | ||
| Diameter(mm) | 0.33 | ||
| Skin layer | Material | Blue polyester tape | |
| Diameter(mm) | 0.01 | ||
| Spiral shield | Material | Tinned copper alloy | |
| Diameter(mm) | 0.03 | ||
| Coaxial Tape | Material | Polyester tape | |
| Color | B1: Gray; A1~A4: White, Black, Red, Blue |
||
| Thickness(mm) | 0.02 | ||
| Diameter(mm) | 0.4 | ||
| Twisting | First layer | a x 5 | a x 4 |
| Second layer | a x 11 | / | |
| Filler | Material | kevlar | |
| Cable assembly | First layer | A x 4 + B x 1 | |
| Diameter | Nom. 4.4 | ||
| Wrapping tape | Material | PTFE tape | |
| Braid Shield | Material | Tinned tinsel copper | |
| Diameter(mm) | 0.25 | ||
| Coverage(%) | 95(min. 90) | ||
| Jacket | Material | Ivory PVC | |
| Nom.Thickness(mm) | 0.95 | ||
| Diameter(mm) | 7.0±0.3 | ||
Properties
| Item | Standard Value |
| Rating temperature(℃) | 60 |
| Rating voltage(V) | 30 |
| Conductor Resistance(Ω/km@20℃) | max.5000 |
| Characteristic Impedance(Ω@10MHz) | Nom. 85 |
| Capacitance(pF/m@1kHz) | Nom. 50 |
| Dielectric Strenth(AC V/1min) | 500@Inner~Outer Conductor |
| Bending test(±90°, 12.7mm, 500g, 250000times) | Inner conductor, Braid, Jacket completed |
