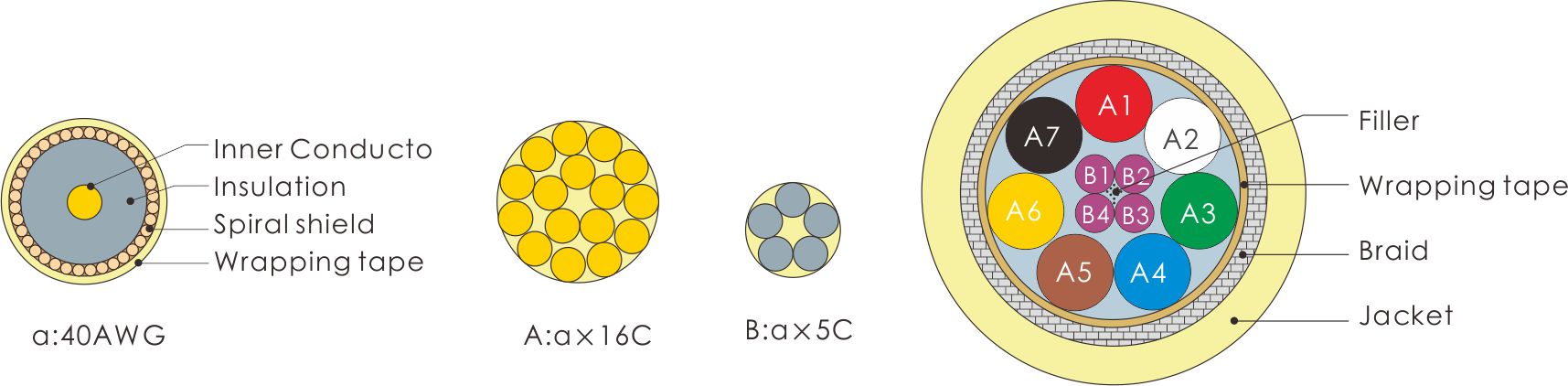

Construction And Material
| ITEM | A (40AWG x 16C) | B (40AWG x5C) | |
| Core No. | 132 | ||
| Inner Conductor | Material | Tinned copper alloy wire | |
| Composition(No./mm) | 7/0.03 | ||
| Diameter(mm) | 0.09 | ||
| Insulation | Material | Red PFA | |
| Thickness (mm) | 0.07 | ||
| Diameter(mm) | 0.23 | ||
| Spiral shield | Material | Tinned copper alloy wire | |
| Diameter(mm) | 0.03 | ||
| Coaxial Tape | Material | Polyester tape | |
| Color | B1~B4: Purple; A1~A7: Red, White, Green, Blue, Brown, Yellow, Black |
||
| Thickness(mm) | 0.02 | ||
| Diameter(mm) | 0.33 | ||
| Twisting | First layer | a x 5 | a x 5 |
| Second layer | a x 11 | / | |
| Filler | Material | kevlar | |
| Cable assembly | First layer | B x 4 | |
| Second layer | A x 7 | ||
| Diameter(mm) | Nom. 4.9 | ||
| Wrapping tape | Material | PTFE tape | |
| Braid Shield | Material | Tinned copper wire | |
| Diameter(mm) | 0.2 | ||
| Coverage(%) | 85 | ||
| Jacket | Material | Ivory PVC, medical grade | |
| Nom.Thickness(mm) | 0.75 | ||
| Diameter(mm) | 7.0±0.3 | ||
Properties
| Item | Standard Value |
| Rating temperature(℃) | 60 |
| Rating voltage(V) | 30 |
| Conductor Resistance(Ω/km@20℃) | max.5000 |
| Insulation Resistance(MΩ-km@20℃) | min.1000 |
| Characteristic Impedance(Ω@10MHz) | Nom. 50 |
| Capacitance(pF/m@1kHz) | Nom. 110 |
| Dielectric Strenth(AC V/1min) | 500@Inner~Outer Conductor |
