Low loss Phase Stable Cable
Low loss Phase Stable Cable

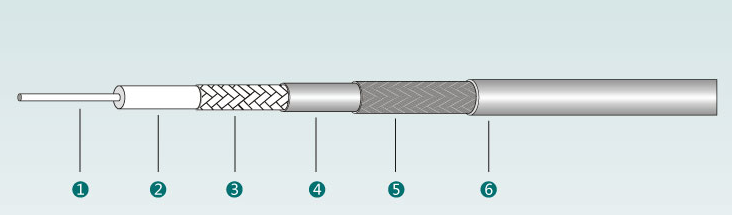

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 1.29 |
| 2. Dielectric | LD PTFE | 3.91 |
| 3. Outer Conductor 1 | Silver Plated Copper Tape Braid | -- |
| 4. Outer Conductor 2 | Aluminum foil | -- |
| 5. Outer Conductor 3 | Silver Plated Copper Tape Braid | 4.75 |
| 6. Jacket | FEP | 5.21 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.87.6 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 76 |
| Time Delay(ns/m) | 4.3 |
| Max Operating Frequency(MHz) | 18 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 1.0 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +200 |
| Min Bending Radius(mm) | 38.1 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 0.1 | 0.10 | 2430 |
| 0.4 | 0.19 | 1201 |
| 1.0 | 0.30 | 750 |
| 2.0 | 0.43 | 523 |
| 3.0 | 0.54 | 422 |
| 8.0 | 0.90 | 248 |
| 10.0 | 1.01 | 220 |
| 12.0 | 1.12 | 198 |
| 13.5 | 1.19 | 186 |
| 16.0 | 1.30 | 168 |
| 18.0 | 1.37 | 157 |
